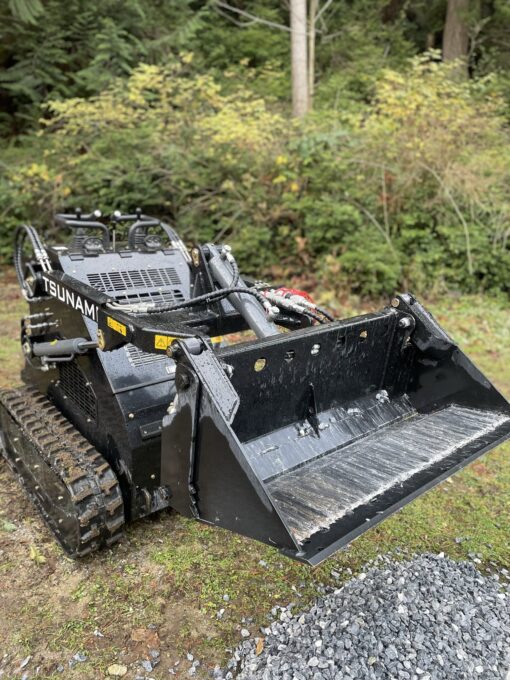

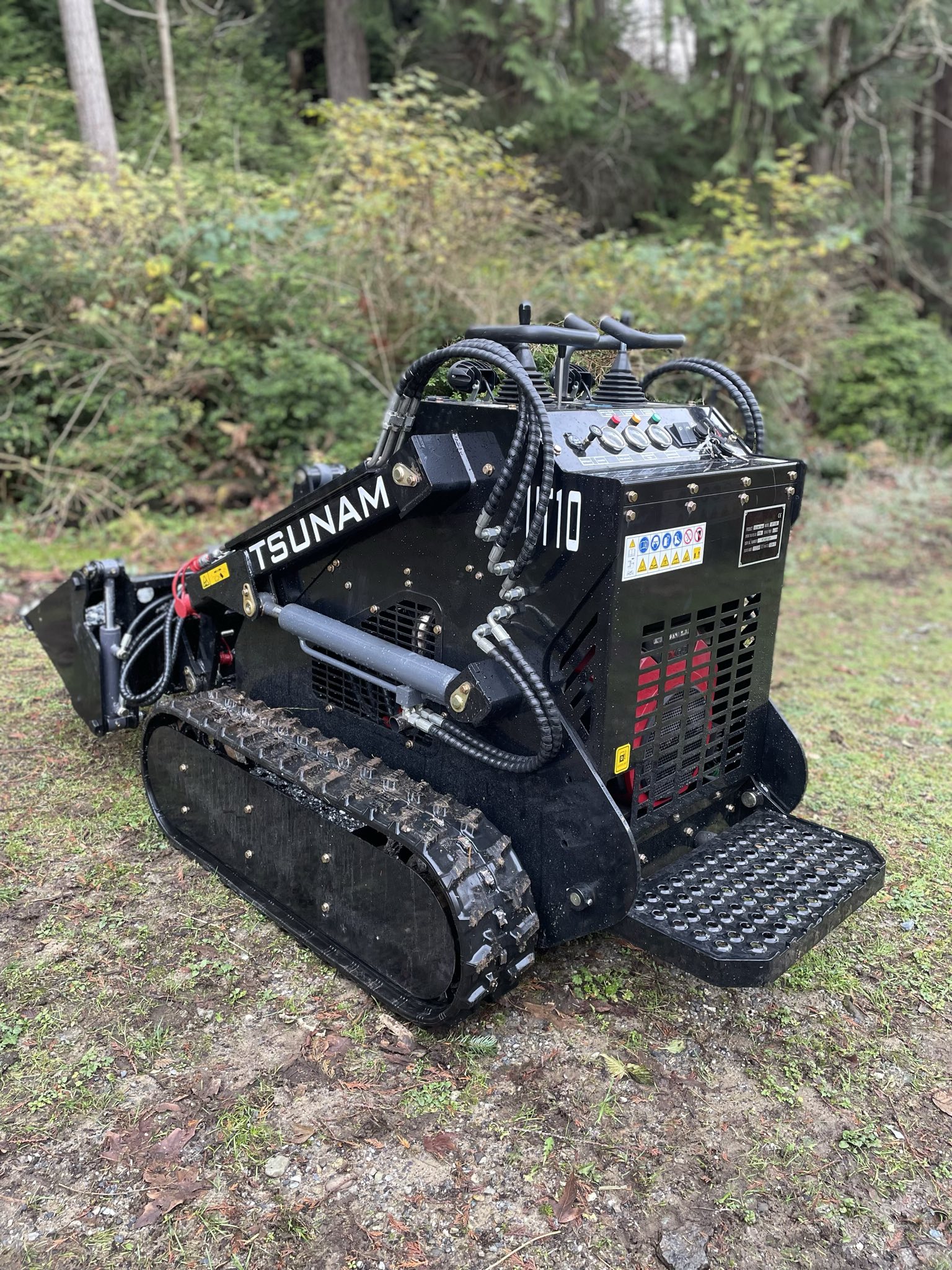

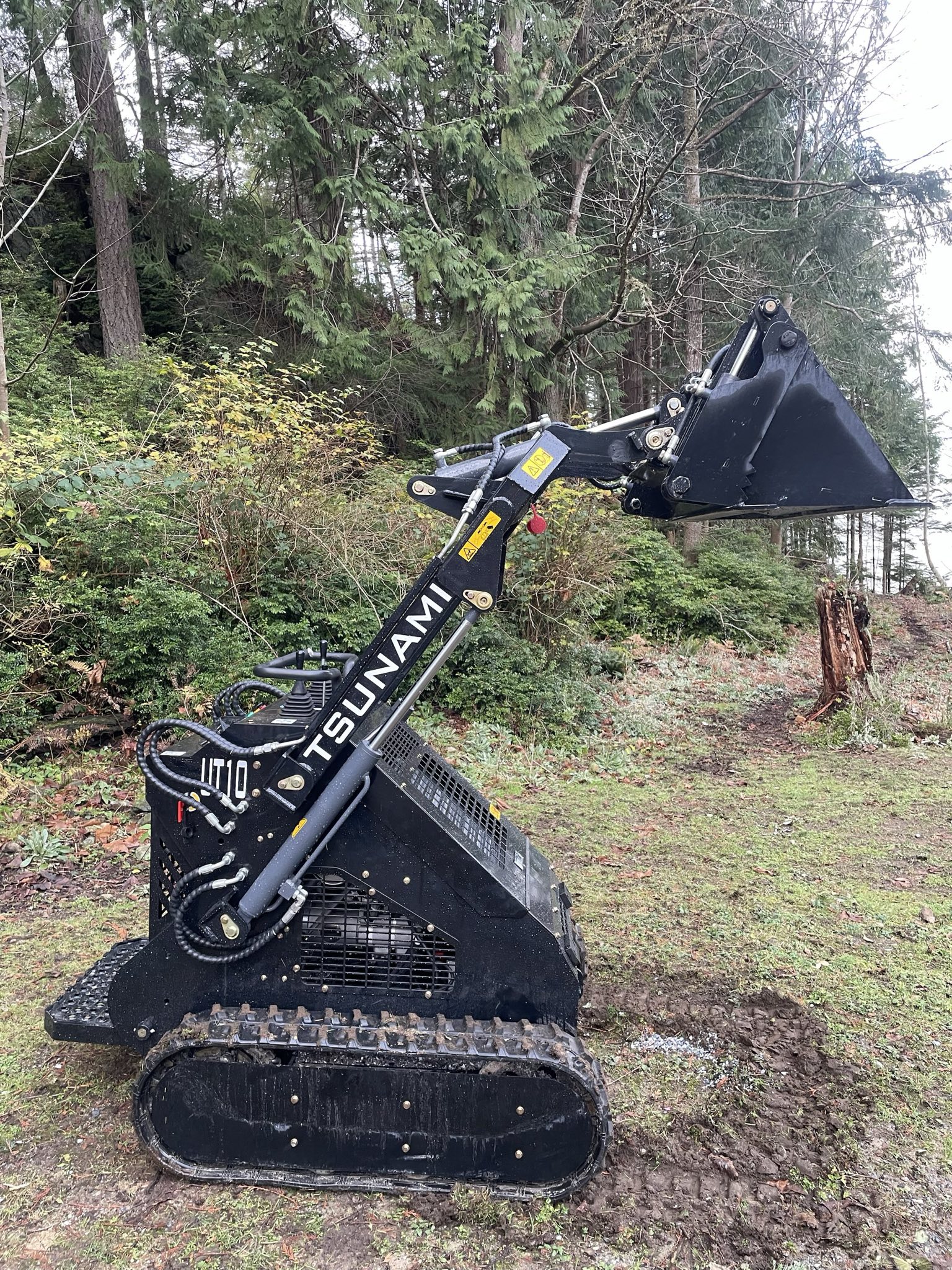

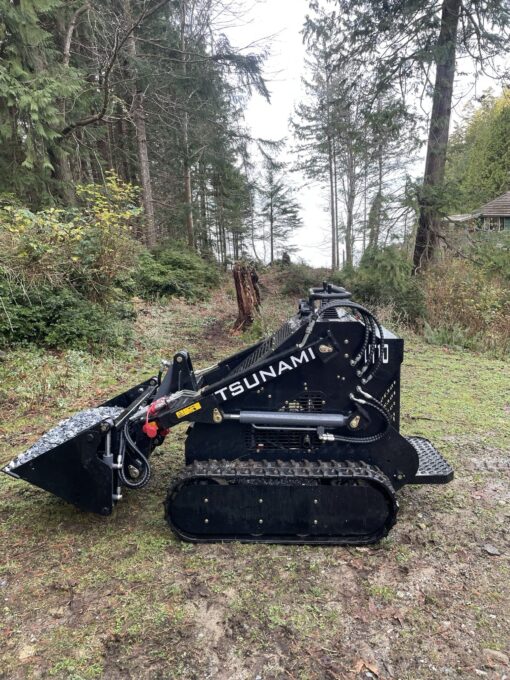

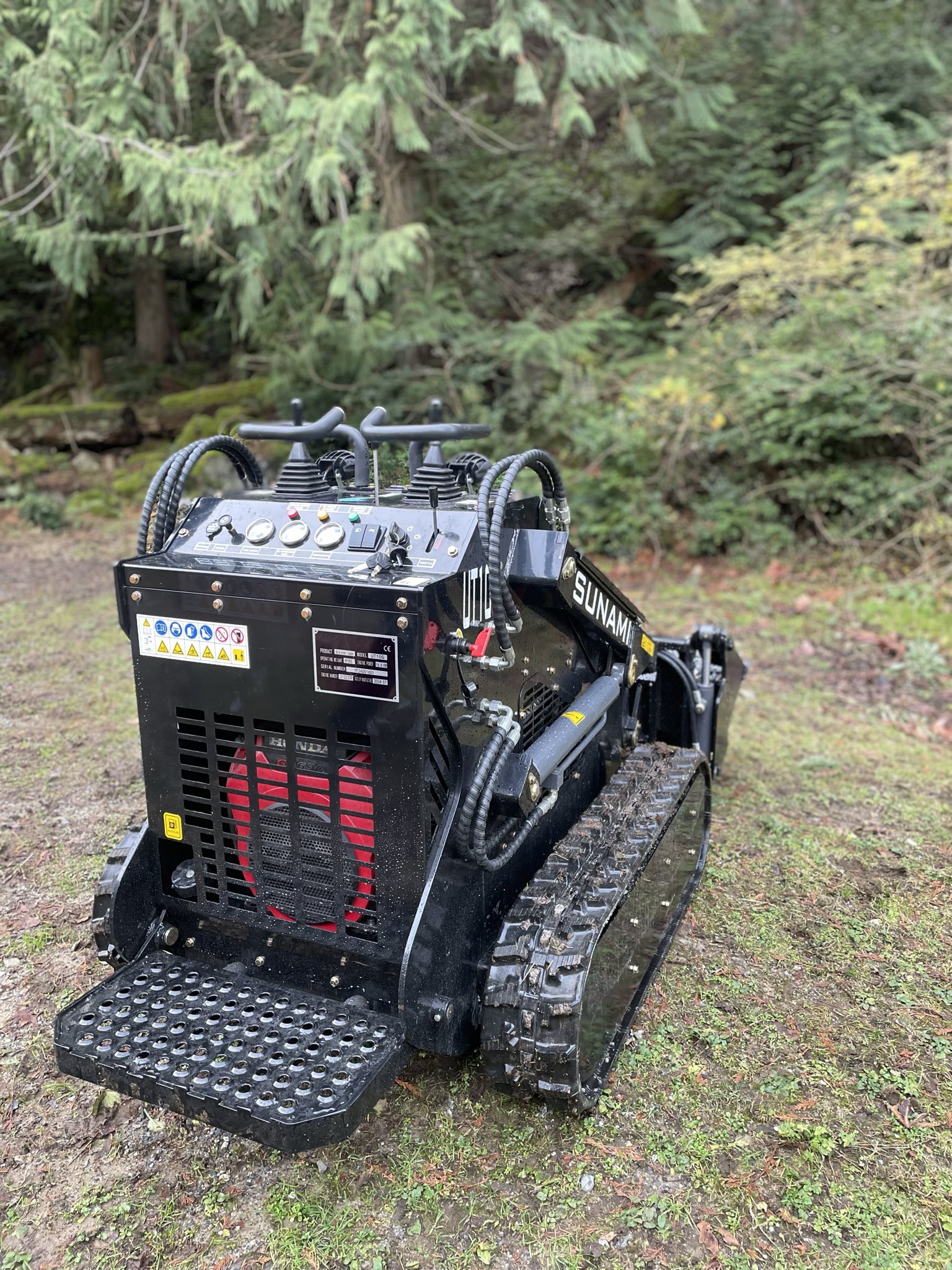

UT10G – 1 Ton 22.1hp Utility Track Loader
$14,000.00
The Mini Utility Track Loader (UTL) is a versatile and powerful machine designed to handle various tasks with ease. With features like a gasoline 22.1hp Honda engine, a Rated Operating capacity of 840 lbs (380 kg), and a comprehensive catalog of attachments, it’s your go-to solution for landscaping, material handling, and more. Work smarter, not harder!

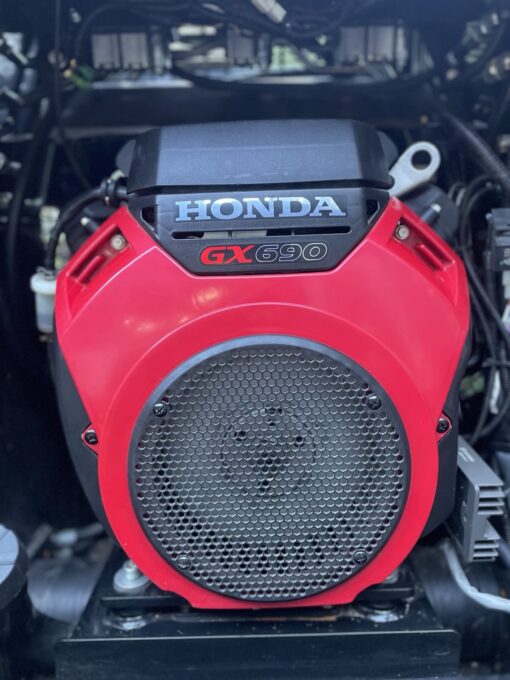

The UT10G Midi Utility Track Loader (UTL) may be may not be the size of a classic ride in UTL or skid steer but it not to underestimated.. With its gasoline 22.1hp Honda GX690 engine, this mighty machine is your ultimate helping hand around the barn or job site. Say goodbye to backbreaking work with shovels and wheelbarrows—the UTL takes care of it all.
Key Features:
- Versatile Performance: From moving soil and gravel to lifting heavy objects, the UWL handles tasks that would otherwise require hours of manual labor. With the lift capacity of 840lbs (380kg) this compact powerhouse can tackle just about any job!

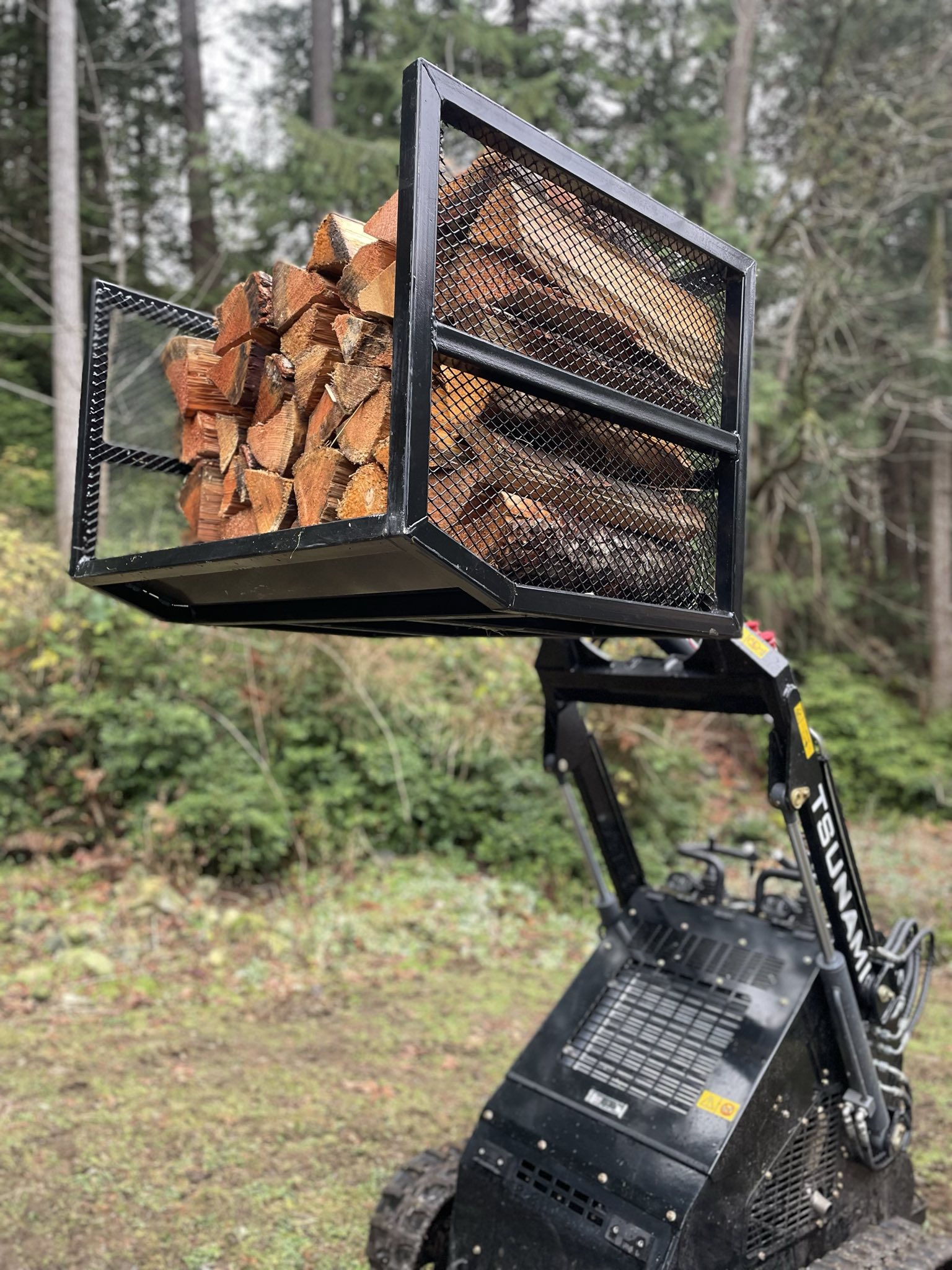

- Attachments Galore: Explore our comprehensive catalog of attachments to customize your UTL. Whether it’s a bucket, wench, fork, chipper, or sweeper, this little workhorse adapts effortlessly.
- Compact and Convenient: The UTL’s compact size allows it to fit snugly into any shed or garage. With its total weight of 2000lbs and compact size the UT10G can be transported in the back of a 3/4 ton pickup truck or a small trailer.
- Tracked style gives more grip and stability then its wheeled counterpart.
Why Choose the Midi Utility Track Loader (UT10G):
- Efficiency: Get more done in less time. The UTL streamlines your chores, leaving you with more moments to enjoy your life.
- Durability: Built to withstand tough conditions, the UTL is a reliable companion for years to come.
- Ease of Use: Simple controls and maneuverability make it accessible for everyone, from seasoned operators to beginners.
Whether you’re landscaping, clearing debris or snow, dig trenches, or transporting materials, the Midi Utility Track Loader (UWL) is your go-to solution. Work smarter, not harder!
| Weight | 880 kg |
|---|---|

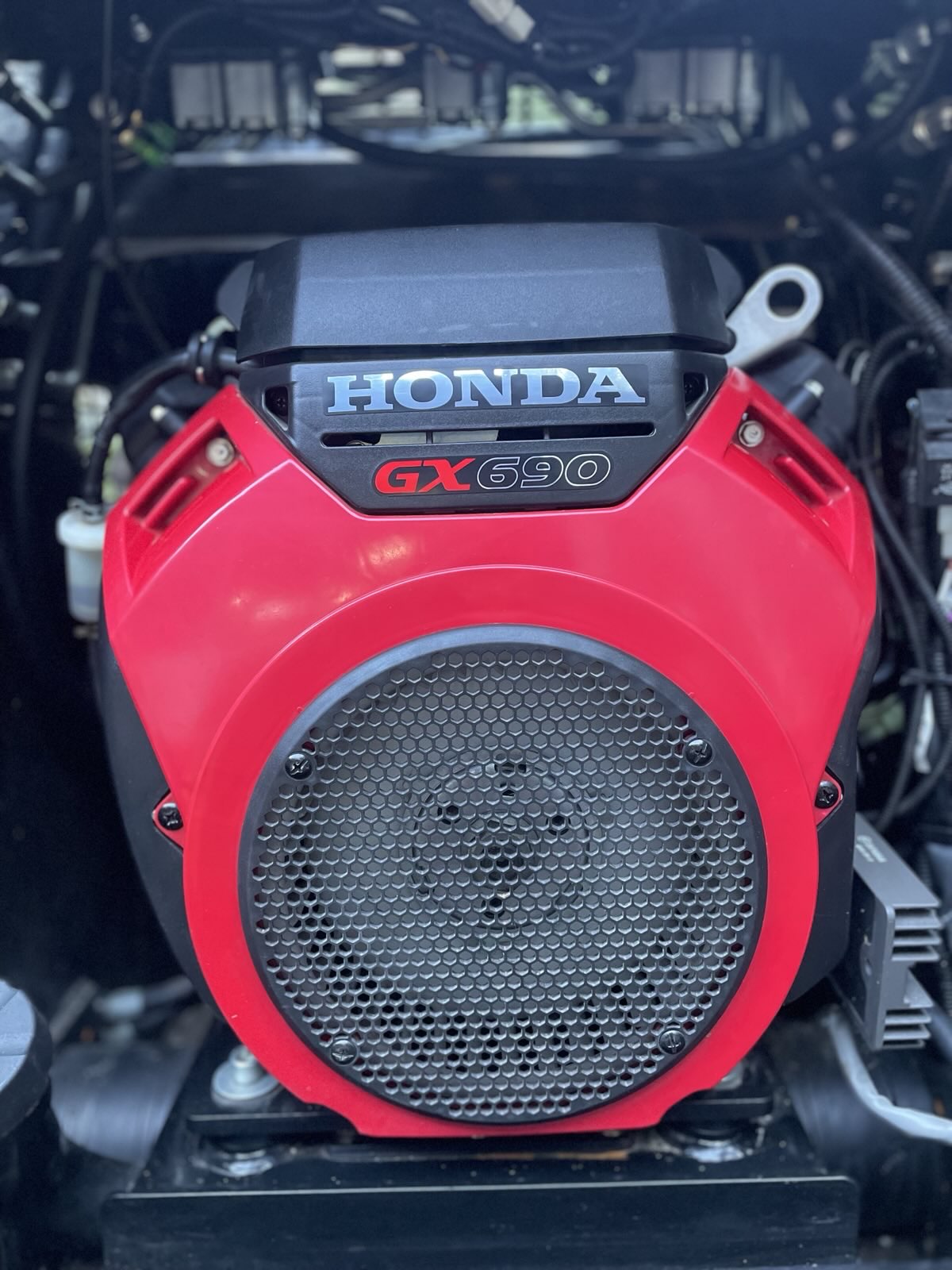

| Engine | Honda GX690 |
| Number Of Cylinders | 2 |
| Compression Ratio | 9.3:1 |
| Displacement cu-in (L) | 42.0 cu-in, 0.688 L |
| Gross Horsepower @ 3600RPM | 22.1hp, 16.5Kw |
| Forward travel speed | 5.5 km/h, 3.5 mph |
| Max Gradeability uphill | 25 degrees |
| Max Gradeability side uphill | 20 degrees |
| Ground pressure | 4.5 psi, 31 kpa |
| Operating Weight | 1940lbs, 880kg |
| Hydraulic System Pressure | 2,900 psi, 200 bar |
| Auxiliary flow | 10 gpm, 37.8 L/m |

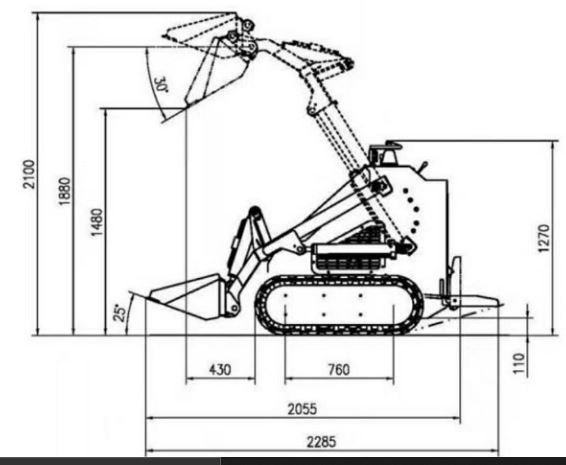

| Hight of Machine | 4 ft. 2 in., 1.27 m |
| Max Working Hight | 6' 11", 2.1m |
| Minimum Transport Length | 5' 2", 1.6m |
| Width with bucket W/O bucket | 2 ft. 10 in., 0.81 m |
| Overall Length with Bucket | 7' 6", 2.3m |
| Overall Length w/o Bucket | 5' 1-", 1.78m |
| Track Shoe Width | 9.0 in. (0.23 m) |
| Center to center - Idler to sprocket or Idler to Idler | 2 ft. 6 in., 0.76 m |
| Minimum Ground Clearance | 4.3", 11cm |
| Max Hinge Pin Height | 6' 2", 1.9m |
| Max Dumping Hight | 4' 10", 1.48m |
| Max Dumping Distance | 1' 5", 0.43m |
| Max Dumping Angle | 30 deg |
| Rollback of Bucket on Ground | 25 deg |
| Departure Angle | 27 deg |
| Attachment mounting system | Common Industry Interface |
| Wheel Base | 2' 6", 0.76m |

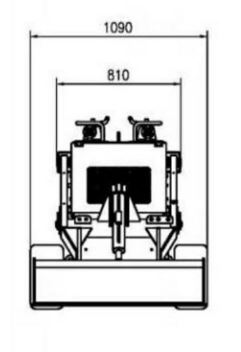

| Total Width | 2' 8", 0.81m |
| Bucket Width | 3' 7", 1.1m |

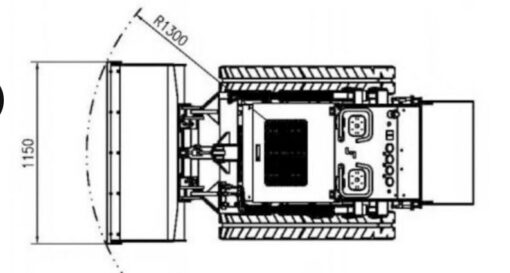

| Turn Radius | 4' 3", 1.3m |
| Rated Operating Capacity | 525 lb, 280 kg |
| Max Lifting Capacity | 840lbs, 380kg |
| Max Lifting Force | 1009lb, 458kg |
| Bucket Capacity | 4.6ft^3, 0.3m^3 |
| Tipping Capacity | 1,500 lb, 682 kg |
| Hydraulic Oil Capacity | 6.61 gal, 25 L |
| Fuel Tank Capacity | 5.8 gal, 21.9 L |
| Engine Oil Capacity | 2l |
| Operator Sound Pressure (ISO 6396:2008) | 95 dB(A) |
| Average Exterior Sound Pressure (ISO 6395:2008) | 105 dB(A) |
Only logged in customers who have purchased this product may leave a review.
Quick Comparison

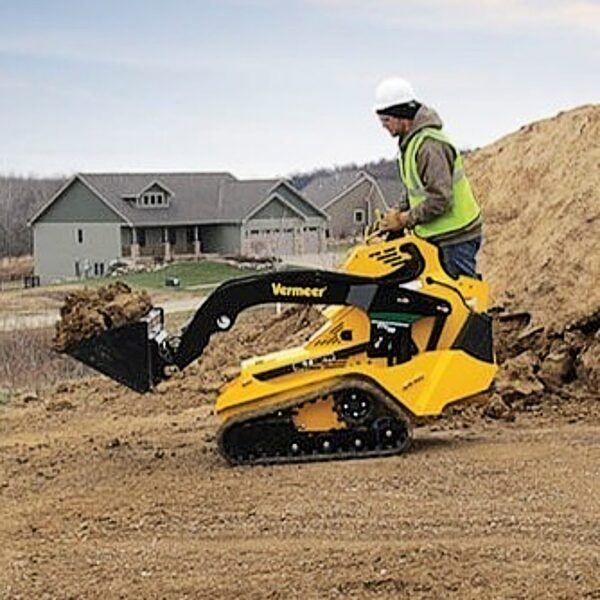

| UT10G - 1 Ton 22.1hp Utility Track Loader remove | Toro Dingo TX 427 Utility Track Loader remove | Vermeer CTX50 Utility Track Loader remove | UTL6G - 0.6 Ton 14hp Utility Track Loader remove | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
