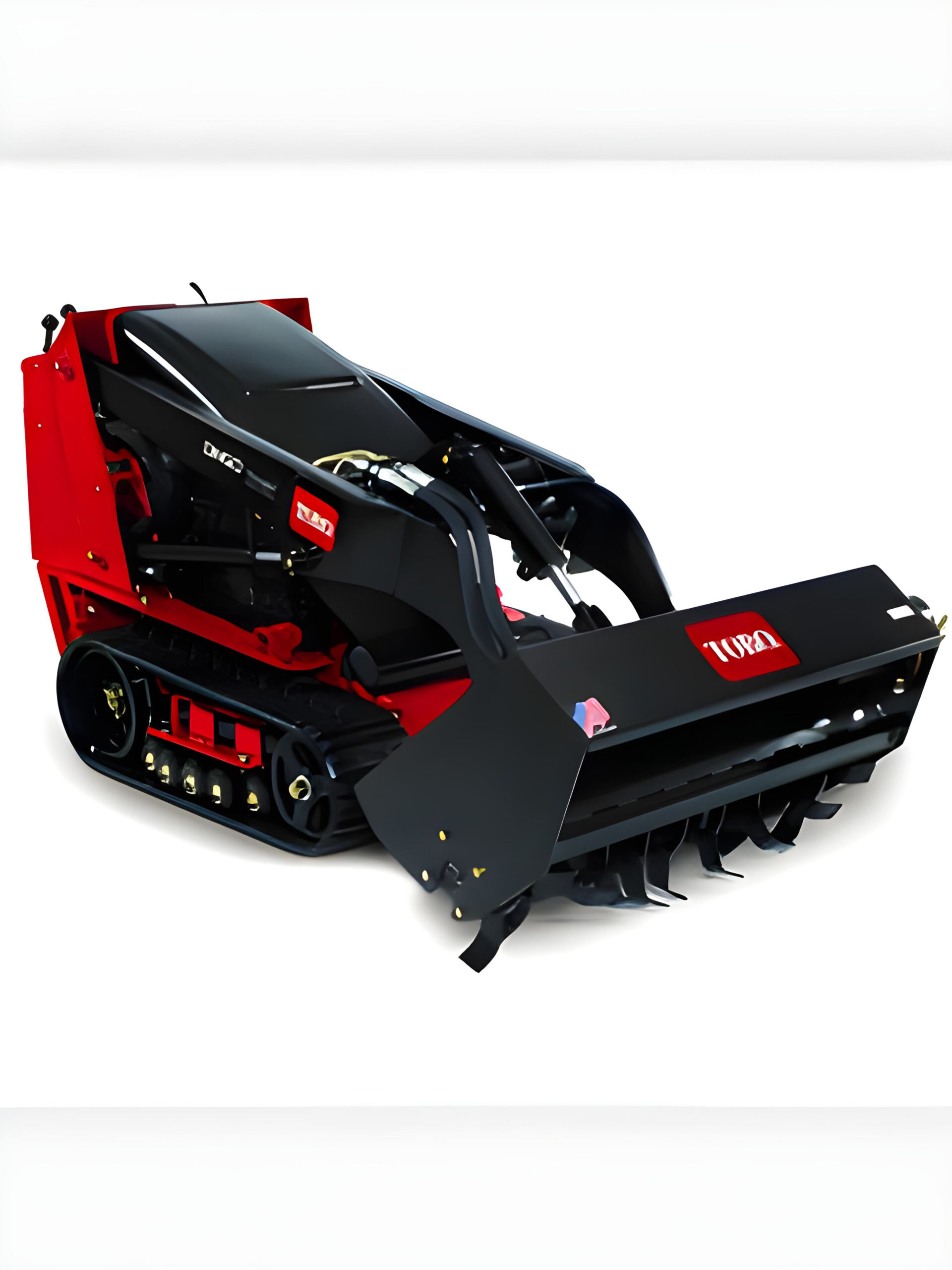

Toro Dingo TX 427 Utility Track Loader

Use this Toro Dingo TX 427 information to Compare with other models

Category: Comparison Utility Loaders Tags: mini, mini utility loader, ride on, skid steer, utility track loader, UTL Brand: Toro

Check out the Toro Dingo Website for more info about the Toro Dingo TX 427 Utility Track Loader!

Or check out our Tsunami equivalent models!

Weight	943 kg
Engine	Kohler ® Command Pro® Series EFI ECH740
Number Of Cylinders	2
Compression Ratio	–
Displacement cu-in (L)	44.0 cu-in, 0.725 L
Gross Horsepower @ 3600RPM	25hp, 18.6Kw
Forward travel speed	7.2km/h, 4.5mph
Max Gradeability uphill	25 degrees
Max Gradeability side uphill	20 degrees
Ground pressure	5.1 psi, 35.2 kpa
Operating Weight	2075lbs, 943kg
Hydraulic System Pressure	3,000 psi, 206.8 bar
Auxiliary flow	11.4 gpm, 43.1 L/m
Hight of Machine	3 ft. 10 in., 1.17 m
Max Working Hight	–
Minimum Transport Length	5' 11", 1.80m
Width with bucket W/O bucket	3 ft. 5 in., 1.04 m
Overall Length with Bucket	7' 8", 2.33m
Overall Length w/o Bucket	5' 11", 1.80m
Track Shoe Width	5.9 in. (0.15 m)
Center to center - Idler to sprocket or Idler to Idler	2 ft. 7 in, 0.79 m
Minimum Ground Clearance	4.6", 12cm
Max Hinge Pin Height	5' 6", 1.67m
Max Dumping Hight	3 ft. 10 in, 1.17 m
Max Dumping Distance	1 ft. 10 in, 0.55 m
Max Dumping Angle	38 degrees
Rollback of Bucket on Ground	–
Departure Angle	–
Attachment mounting system	Common Industry Interface
Wheel Base	–
Total Width	–
Bucket Width	3' 5", 1.04m
Turn Radius	–
Rated Operating Capacity	635 lb, 242.7 kg
Max Lifting Capacity	–
Max Lifting Force	–
Bucket Capacity	–
Tipping Capacity	1,530 lb, 694 kg
Hydraulic Oil Capacity	10 gal, 37.8 L
Fuel Tank Capacity	6gal, 22.7L
Engine Oil Capacity	–
Operator Sound Pressure (ISO 6396:2008)	90 dB(A)
Average Exterior Sound Pressure (ISO 6395:2008)	103 dB(A)
Assumed or not Certain Value	*

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Quick Comparison

Toro Dingo TX 427 Utility Track Loader remove UTL6G - 0.6 Ton 14hp Utility Track Loader remove UT10G - 1 Ton 22.1hp Utility Track Loader remove Vermeer CTX50 Utility Track Loader remove

Name Toro Dingo TX 427 Utility Track Loader remove UTL6G - 0.6 Ton 14hp Utility Track Loader remove UT10G - 1 Ton 22.1hp Utility Track Loader remove Vermeer CTX50 Utility Track Loader remove


Price $9,000.00 $14,000.00

Rating

Add to cart

Description Use this Toro Dingo TX 427 information to Compare with other models The Mini Utility Track Loader (UTL) is the compact yet powerful little sister of the UT10G. Designed to tackle various tasks around your yard and garden. With its 14hp Briggs and Stratton engine, and 574lb (260kg) lift capacity this workhorse can handle everything from moving soil and gravel to lifting heavy objects. Explore a range of attachments, enjoy its compact size for easy storage, and experience the stability of tracked wheels. Choose the UTL for efficiency, durability, and user-friendly controls—work smarter, not harder! The Mini Utility Track Loader (UTL) is a versatile and powerful machine designed to handle various tasks with ease. With features like a gasoline 22.1hp Honda engine, a Rated Operating capacity of 840 lbs (380 kg), and a comprehensive catalog of attachments, it’s your go-to solution for landscaping, material handling, and more. Work smarter, not harder!

Additional information

Weight	943 kg
Engine	Kohler ® Command Pro® Series EFI ECH740
Number Of Cylinders	2
Compression Ratio	–
Displacement cu-in (L)	44.0 cu-in, 0.725 L
Gross Horsepower @ 3600RPM	25hp, 18.6Kw
Forward travel speed	7.2km/h, 4.5mph
Max Gradeability uphill	25 degrees
Max Gradeability side uphill	20 degrees
Ground pressure	5.1 psi, 35.2 kpa
Operating Weight	2075lbs, 943kg
Hydraulic System Pressure	3,000 psi, 206.8 bar
Auxiliary flow	11.4 gpm, 43.1 L/m
Hight of Machine	3 ft. 10 in., 1.17 m
Max Working Hight	–
Minimum Transport Length	5' 11", 1.80m
Width with bucket W/O bucket	3 ft. 5 in., 1.04 m
Overall Length with Bucket	7' 8", 2.33m
Overall Length w/o Bucket	5' 11", 1.80m
Track Shoe Width	5.9 in. (0.15 m)
Center to center - Idler to sprocket or Idler to Idler	2 ft. 7 in, 0.79 m
Minimum Ground Clearance	4.6", 12cm
Max Hinge Pin Height	5' 6", 1.67m
Max Dumping Hight	3 ft. 10 in, 1.17 m
Max Dumping Distance	1 ft. 10 in, 0.55 m
Max Dumping Angle	38 degrees
Rollback of Bucket on Ground	–
Departure Angle	–
Attachment mounting system	Common Industry Interface
Wheel Base	–
Total Width	–
Bucket Width	3' 5", 1.04m
Turn Radius	–
Rated Operating Capacity	635 lb, 242.7 kg
Max Lifting Capacity	–
Max Lifting Force	–
Bucket Capacity	–
Tipping Capacity	1,530 lb, 694 kg
Hydraulic Oil Capacity	10 gal, 37.8 L
Fuel Tank Capacity	6gal, 22.7L
Engine Oil Capacity	–
Operator Sound Pressure (ISO 6396:2008)	90 dB(A)
Average Exterior Sound Pressure (ISO 6395:2008)	103 dB(A)
Assumed or not Certain Value	*

Weight	680 kg
Engine	Brigs and Stratton
Number Of Cylinders	1
Compression Ratio	9.3:1
Displacement cu-in (L)	42.0 cu-in, 0.688 L
Gross Horsepower @ 3600RPM	14.5hp, 10.0Kw
Forward travel speed	5.5 km/h, 3.5 mph
Max Gradeability uphill	25 degrees
Max Gradeability side uphill	20 degrees
Ground pressure	4.5 psi, 31 kpa
Operating Weight	1411lbs, 640kg
Hydraulic System Pressure	2,900 psi, 200 bar
Auxiliary flow	10 gpm, 37.8 L/m
Hight of Machine	4 ft. 2 in., 1.27 m
Max Working Hight	6' 11", 2.1m
Minimum Transport Length	5' 2", 1.6m
Width with bucket W/O bucket	2 ft. 10 in., 0.81 m
Overall Length with Bucket	7' 6", 2.3m
Overall Length w/o Bucket	5' 1-", 1.78m
Track Shoe Width	9.0 in. (0.23 m)
Center to center - Idler to sprocket or Idler to Idler	2 ft. 6 in., 0.76 m
Minimum Ground Clearance	4.3", 11cm
Max Hinge Pin Height	6' 2", 1.9m
Max Dumping Hight	4' 10", 1.48m
Max Dumping Distance	1' 5", 0.43m
Max Dumping Angle	30 deg
Rollback of Bucket on Ground	25 deg
Departure Angle	27 deg
Attachment mounting system	Common Industry Interface
Wheel Base	2' 6", 0.76m
Total Width	2' 8", 0.81m
Bucket Width	3' 7", 1.1m
Turn Radius	4' 3", 1.3m
Rated Operating Capacity	525 lb, 280 kg
Max Lifting Capacity	840lbs, 380kg
Max Lifting Force	1009lb, 458kg
Bucket Capacity	4.6ft^3, 0.3m^3
Tipping Capacity	1,500 lb, 682 kg
Hydraulic Oil Capacity	6.61 gal, 25 L
Fuel Tank Capacity	5.8 gal, 21.9 L
Engine Oil Capacity	2l
Operator Sound Pressure (ISO 6396:2008)	95 dB(A)
Average Exterior Sound Pressure (ISO 6395:2008)	105 dB(A)
Assumed or not Certain Value	*

Weight	880 kg
Engine	Honda GX690
Number Of Cylinders	2
Compression Ratio	9.3:1
Displacement cu-in (L)	42.0 cu-in, 0.688 L
Gross Horsepower @ 3600RPM	22.1hp, 16.5Kw
Forward travel speed	5.5 km/h, 3.5 mph
Max Gradeability uphill	25 degrees
Max Gradeability side uphill	20 degrees
Ground pressure	4.5 psi, 31 kpa
Operating Weight	1940lbs, 880kg
Hydraulic System Pressure	2,900 psi, 200 bar
Auxiliary flow	10 gpm, 37.8 L/m
Hight of Machine	4 ft. 2 in., 1.27 m
Max Working Hight	6' 11", 2.1m
Minimum Transport Length	5' 2", 1.6m
Width with bucket W/O bucket	2 ft. 10 in., 0.81 m
Overall Length with Bucket	7' 6", 2.3m
Overall Length w/o Bucket	5' 1-", 1.78m
Track Shoe Width	9.0 in. (0.23 m)
Center to center - Idler to sprocket or Idler to Idler	2 ft. 6 in., 0.76 m
Minimum Ground Clearance	4.3", 11cm
Max Hinge Pin Height	6' 2", 1.9m
Max Dumping Hight	4' 10", 1.48m
Max Dumping Distance	1' 5", 0.43m
Max Dumping Angle	30 deg
Rollback of Bucket on Ground	25 deg
Departure Angle	27 deg
Attachment mounting system	Common Industry Interface
Wheel Base	2' 6", 0.76m
Total Width	2' 8", 0.81m
Bucket Width	3' 7", 1.1m
Turn Radius	4' 3", 1.3m
Rated Operating Capacity	525 lb, 280 kg
Max Lifting Capacity	840lbs, 380kg
Max Lifting Force	1009lb, 458kg
Bucket Capacity	4.6ft^3, 0.3m^3
Tipping Capacity	1,500 lb, 682 kg
Hydraulic Oil Capacity	6.61 gal, 25 L
Fuel Tank Capacity	5.8 gal, 21.9 L
Engine Oil Capacity	2l
Operator Sound Pressure (ISO 6396:2008)	95 dB(A)
Average Exterior Sound Pressure (ISO 6395:2008)	105 dB(A)

Engine	Kohler ® Command Pro® Series EFI ECH740
Number Of Cylinders	2
Compression Ratio	–
Displacement cu-in (L)	45.0 cu-in, 0.747 L
Gross Horsepower @ 3600RPM	25hp, 18.6Kw
Forward travel speed	5.5 km/h, 3.5 mph
Max Gradeability uphill	25 degrees *
Max Gradeability side uphill	20 degrees *
Ground pressure	4.5 psi, 31 kpa
Operating Weight	2100lbs, 952kg
Hydraulic System Pressure	2,950 psi, 203.4 bar
Auxiliary flow	12.5 gpm, 47.3 L/m
Hight of Machine	4 ft. 6 in., 1.38 m
Max Working Hight	–
Minimum Transport Length	6' 3", 1.91m
Width with bucket W/O bucket	3 ft. 0 in., 0.90 m
Overall Length with Bucket	7' 11", 2.41m
Overall Length w/o Bucket	6' 3-", 1.91m
Track Shoe Width	7.0 in. (0.18 m)
Center to center - Idler to sprocket or Idler to Idler	–
Minimum Ground Clearance	6", 15cm
Max Hinge Pin Height	6' 0", 1.83m
Max Dumping Hight	–
Max Dumping Distance	–
Max Dumping Angle	–
Rollback of Bucket on Ground	–
Departure Angle	–
Attachment mounting system	Common Industry Interface
Wheel Base	–
Total Width	–
Bucket Width	3' 76", 1.07m
Turn Radius	–
Rated Operating Capacity	600 lb, 272.2 kg
Max Lifting Capacity	–
Max Lifting Force	–
Bucket Capacity	–
Tipping Capacity	1,715 lb, 778 kg
Hydraulic Oil Capacity	12 gal, 45 L
Fuel Tank Capacity	4gal, 15L
Engine Oil Capacity	–
Operator Sound Pressure (ISO 6396:2008)	–
Average Exterior Sound Pressure (ISO 6395:2008)	–
Assumed or not Certain Value	*
