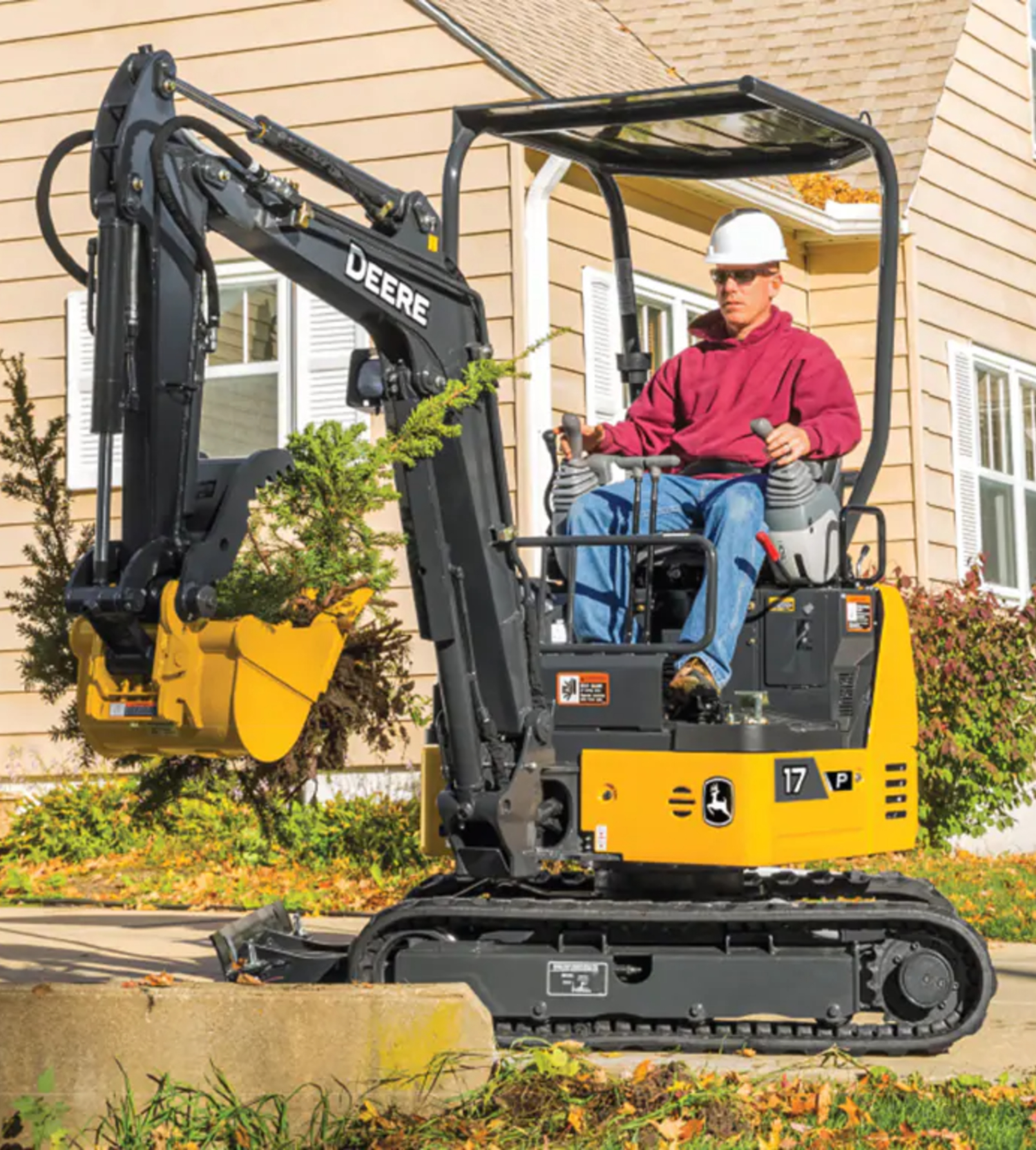

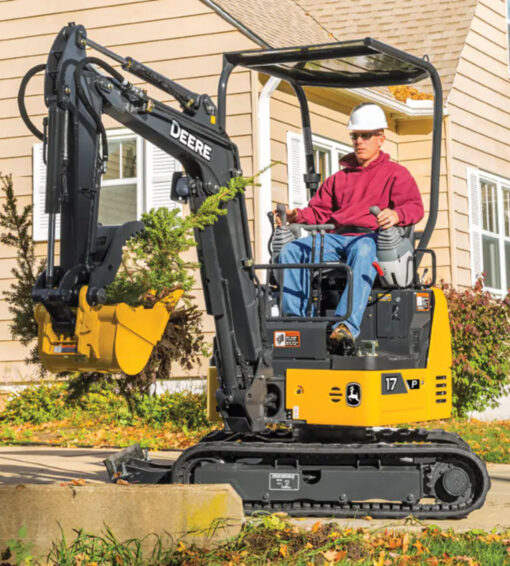

Deere 17G/ P-tier Excavator

Category: Comparison Excavators Tags: excavator, mini, mini excavator, zero tail Brand: John Deere

Check out the John Deere Website for more info on the Deere 17G/ P-tier!

Or check out our Tsunami equivalent models!

Engine	Yanmar 3TNV74F
Cylinders	3
Displacement	61.0 cu-in, 0.99 L
Net Horsepower @ RPM	14.5hp, 10.8Kw @ 2400 RPM
Travel speeds Low/High	Low: 2.4 km/h, 1.5 mph High: 4.2 km/h, 2.6 mph
Max traction force Low	2,562.8 lb, 1,165 kg
Gradeability	30 degrees
Ground pressure Canopy/Cab	3.9 psi, 26.6 kPa
Pump Type	Gear, 2 port Piston
Pump Flow, Piston	2 x 5.1 gpm, 2 x 19.2 L/min
Pump Flow, Gear	2.9 gpm, 10.98 L/min
System Pressure	2,988 psi, 206 bar
Auxiliary Flow	7.9 gpm, 30 L/m @ 2300 RPM
Operating Weight - Canopy	3,790 lb., 1,720 kg
Operating Weight - Cab	N/A
Overall Height	7 ft. 10 in., 2.38 m
Minimum Overall transport length	11 ft. 6 in., 3.50 m
Width of Upper Structure	3 ft. 3 in., 0.99 m
Track Overall Length	5 ft. 2 in., 1.57 m
Track Overall Width (retracted /extended)	3 ft. 3 in., 0.99 m) / 4 ft. 2 in., 1.28 m
Track Shoe Width	9 in., 0.23 m
Center to Center - Idler to Sprocket	4 ft. 0 in., 1.22 m
Upper Structure Ground Clearance	1 ft. 6 in., 0.45 m
Minimum Ground Clearance	6 in., 0.17 m
Boom Swing Left / Right	70 degrees / 50 degrees
Arm / Stick / Dipper Length Standard Arm Long	3 ft. 1 in., 0.93 m – ft. – in., – m
Radius: Standard Counterweight/Additional Counterweight	2 ft. 3 in., 0.68 m – ft. – in., – m
Tail Swing Overhang: Standard Counterweight/Additional Counterweight	1.6 in., 4 cm – in., – cm
Blade height	10.2 in., 0.26 m
Blade Width: Standard / With Extensions	3 ft. 3 in., 0.98 m 4 ft. 2 in., 1.28 m
Blade: Bottom Highest/Lowest Position	11 in., 0.29 m / 9 in., 0.23 m
Maximum Dig Radius / Max Reach: Standard Arm / Long Arm	12 ft. 6 in., 3.81 m – ft. – in., – m
Maximum Ground Level Dig Radius/Reach: Standard Arm/Long Arm	12 ft. 2 in., 3.72 m – ft. – in., – m
Maximum Digging Depth: Standard Arm/Long Arm	7 ft. 2 in., 2.19 m – ft. – in., – m
Maximum Digging Hight: Standard Arm/Long Arm	11 ft. 7 in., 3.54 m – ft. – in., – m
Maximum Dump Hight: Standard Arm/Long Arm	8 ft. 3 in., 2.51 m – ft. – in., – m
Minimum swing radius	5 ft. 0 in., 1.53 m
Arm /Stick Digging Force: Standard Arm/Long Arm	1,933 lbf, 8.6 kN – lbf, – kN
Arm/Stick Breakout Force	lbf, kN
Bucket Digging Force	3,597 lbf, 16.0 kN
Bucket Breakout Force	lbf, kN
Rated Lifting Capacity: 3m (9.8ft) radius, over front, blade down at ground level	1,015 lb, 471 kg
Swing/Slewing Speed	9.4 RPM
Hydraulic Oil Capacity: Tank/System	3.7 gal, 14 L 6.9 gal, 26 L
Fuel Tank Capacity	5.3 gal, 20 L
Engine Oil Capacity, Including Filter	3.3 qt., 3.1 L
Operator Sound Pressure (ISO 6396:2008)	79 dB(A)
Average Exterior Sound Pressure (ISO 6395:2008)	93 dB(A) *
Assumed or not Certain Value	*
