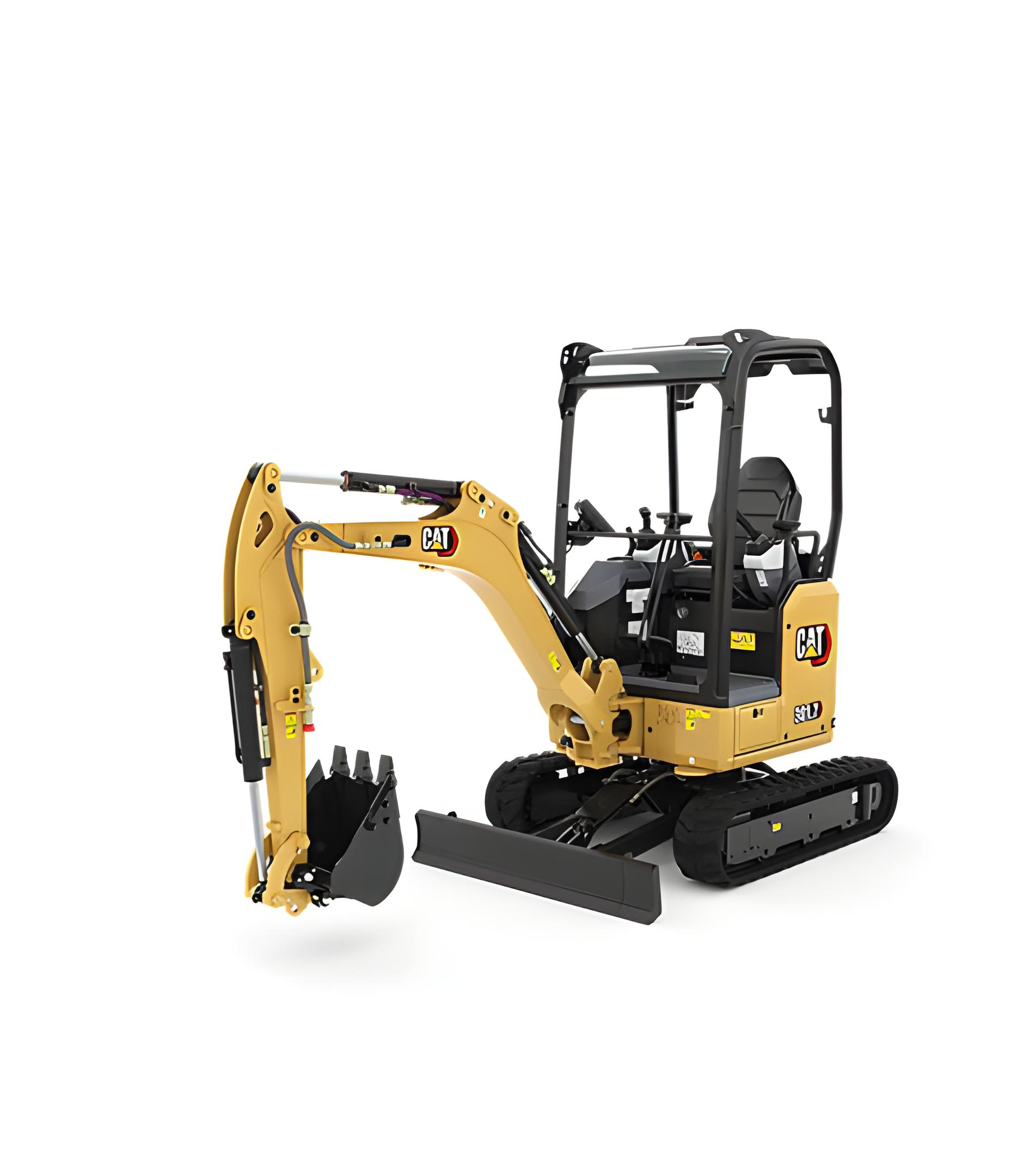

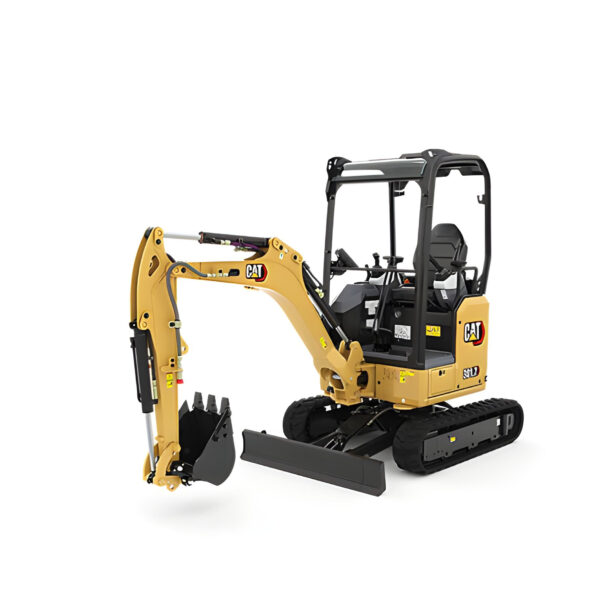

Cat 301.7 CR Excavator

Category: Comparison Excavators Tags: excavator, mini, mini excavator, zero tail Brand: Cat

Check out the Cat Website for more info on the Deere Cat 301.7 CR Excavator

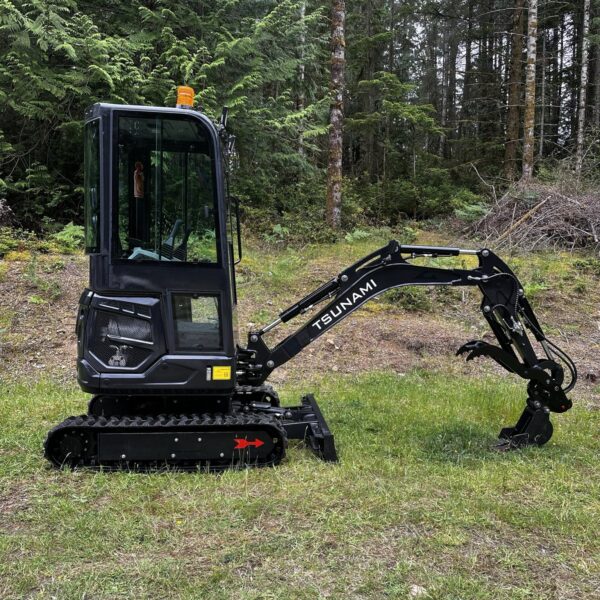

Or check out our Tsunami equivalent models!

Engine	CAT C1.1
Cylinders	3
Displacement	69.0 cu-in, 1.1 L
Net Horsepower @ RPM	21.0 hp, 15.7Kw @ 2400 RPM
Travel speeds Low/High	Low: 2.9 km/h, 1.8 mph High: 4.4 km/h, 2.7 mph
Max traction force Low	4,136.5 lb. /1,880 kg
Gradeability	30 degrees
Ground pressure Canopy/Cab	4.0 psi, 27.9 kPa – psi, – kPa
Pump Type	Piston
Pump Flow, Piston	17.4 gpm, 66 L/min
Pump Flow, Gear	N/A
System Pressure	3,553.4 psi, 245 bar
Auxiliary Flow	8.7 gpm, 33 L/m @ 2400 RPM 3.7 gpm, 14 L/m @ 2400 RPM
Operating Weight - Canopy	3,946 lb., 1,790 kg
Operating Weight - Cab	N/A
Overall Height	7 ft. 6 in., 2.30 m
Minimum Overall transport length	11 ft. 10 in., 3.62 m
Width of Upper Structure	3 ft. 3 in., 0.99 m
Track Overall Length	5 ft. 2 in., 1.57 m
Track Overall Width (retracted /extended)	3 ft. 3 in., 0.99 m) / 4 ft. 2 in., 1.28 m
Track Shoe Width	9 in., 0.23 m
Center to Center - Idler to Sprocket	– ft. – in., – m
Upper Structure Ground Clearance	1 ft. 5 in., 0.44 m
Minimum Ground Clearance	5.5 in., 0.14 m
Boom Swing Left / Right	65 degrees / 50 degrees
Arm / Stick / Dipper Length Standard Arm Long	3 ft. 2 in., 0.96 m 3 ft. 9 in., 1.16 m
Radius: Standard Counterweight/Additional Counterweight	2 ft. 1 in., 0.65 m – ft. – in., – m
Tail Swing Overhang: Standard Counterweight/Additional Counterweight	0 in., 0 cm – in., – cm
Blade height	8.9 in., 0.23 m
Blade Width: Standard / With Extensions	3 ft. 3 in., 0.98 m 4 ft. 3 in., 1.30 m
Blade: Bottom Highest/Lowest Position	10.6 in., 0.27 m / 10.4 in., 0.265 m
Maximum Dig Radius / Max Reach: Standard Arm / Long Arm	13 ft. 0 in., 3.97 m 13 ft. 6 in., 4.13 m
Maximum Ground Level Dig Radius/Reach: Standard Arm/Long Arm	12 ft. 9 in., 3.90 m 13 ft. 4 in., 4.06 m
Maximum Digging Depth: Standard Arm/Long Arm	7 ft. 8 in., 2.35 m 8 ft. 4 in., 2.54 m
Maximum Digging Hight: Standard Arm/Long Arm	11 ft. 3 in., 3.43 m 11 ft. 5 in., 3.49 m
Maximum Dump Hight: Standard Arm/Long Arm	8 ft. 0 in., 2.45 m 8 ft. 3 in., 2.51 m
Minimum swing radius	5 ft. 4 in., 1.63 m
Arm /Stick Digging Force: Standard Arm/Long Arm	2,135.7 lbf, 9.5 kN 1,865.9 lbf, 8.3 kN
Arm/Stick Breakout Force	lbf, kN
Bucket Digging Force	3,641.9 lbf, 16.2 kN
Bucket Breakout Force	lbf, kN
Rated Lifting Capacity: 3m (9.8ft) radius, over front, blade down at ground level	1000 lb, 454 kg *
Swing/Slewing Speed	9.8 RPM
Hydraulic Oil Capacity: Tank/System	4.8 gal, 18.0 L 6.9 gal, 26.0 L
Fuel Tank Capacity	5.8 gal, 22 L
Engine Oil Capacity, Including Filter	1.2 gal, 4.4 L
Operator Sound Pressure (ISO 6396:2008)	73 dB(A)
Average Exterior Sound Pressure (ISO 6395:2008)	93 dB(A)
Assumed or not Certain Value	*

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Quick Comparison

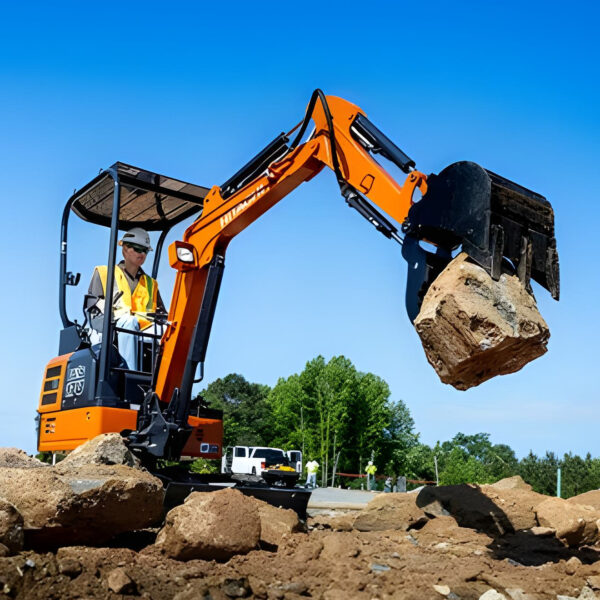

Cat 301.7 CR Excavator remove Hitachi ZX17U-5N Excavator remove Kubota kx018-4 Excavator remove Deere 17G/ P-tier Excavator remove Case CX17C Excavator remove EZ18D 1.8 Ton Excavator - Cab remove

Name Cat 301.7 CR Excavator remove Hitachi ZX17U-5N Excavator remove Kubota kx018-4 Excavator remove Deere 17G/ P-tier Excavator remove Case CX17C Excavator remove EZ18D 1.8 Ton Excavator - Cab remove


Price $21,000.00

Rating

Add to cart

Description Experience efficiency, reliability, and operator comfort with our 1.8-Ton Excavator. Engineered for tight spaces and equipped with a Kubota diesel engine, it’s your go-to solution for versatile tasks. Choose compact efficiency!

Additional information

Engine	CAT C1.1
Cylinders	3
Displacement	69.0 cu-in, 1.1 L
Net Horsepower @ RPM	21.0 hp, 15.7Kw @ 2400 RPM
Travel speeds Low/High	Low: 2.9 km/h, 1.8 mph High: 4.4 km/h, 2.7 mph
Max traction force Low	4,136.5 lb. /1,880 kg
Gradeability	30 degrees
Ground pressure Canopy/Cab	4.0 psi, 27.9 kPa – psi, – kPa
Pump Type	Piston
Pump Flow, Piston	17.4 gpm, 66 L/min
Pump Flow, Gear	N/A
System Pressure	3,553.4 psi, 245 bar
Auxiliary Flow	8.7 gpm, 33 L/m @ 2400 RPM 3.7 gpm, 14 L/m @ 2400 RPM
Operating Weight - Canopy	3,946 lb., 1,790 kg
Operating Weight - Cab	N/A
Overall Height	7 ft. 6 in., 2.30 m
Minimum Overall transport length	11 ft. 10 in., 3.62 m
Width of Upper Structure	3 ft. 3 in., 0.99 m
Track Overall Length	5 ft. 2 in., 1.57 m
Track Overall Width (retracted /extended)	3 ft. 3 in., 0.99 m) / 4 ft. 2 in., 1.28 m
Track Shoe Width	9 in., 0.23 m
Center to Center - Idler to Sprocket	– ft. – in., – m
Upper Structure Ground Clearance	1 ft. 5 in., 0.44 m
Minimum Ground Clearance	5.5 in., 0.14 m
Boom Swing Left / Right	65 degrees / 50 degrees
Arm / Stick / Dipper Length Standard Arm Long	3 ft. 2 in., 0.96 m 3 ft. 9 in., 1.16 m
Radius: Standard Counterweight/Additional Counterweight	2 ft. 1 in., 0.65 m – ft. – in., – m
Tail Swing Overhang: Standard Counterweight/Additional Counterweight	0 in., 0 cm – in., – cm
Blade height	8.9 in., 0.23 m
Blade Width: Standard / With Extensions	3 ft. 3 in., 0.98 m 4 ft. 3 in., 1.30 m
Blade: Bottom Highest/Lowest Position	10.6 in., 0.27 m / 10.4 in., 0.265 m
Maximum Dig Radius / Max Reach: Standard Arm / Long Arm	13 ft. 0 in., 3.97 m 13 ft. 6 in., 4.13 m
Maximum Ground Level Dig Radius/Reach: Standard Arm/Long Arm	12 ft. 9 in., 3.90 m 13 ft. 4 in., 4.06 m
Maximum Digging Depth: Standard Arm/Long Arm	7 ft. 8 in., 2.35 m 8 ft. 4 in., 2.54 m
Maximum Digging Hight: Standard Arm/Long Arm	11 ft. 3 in., 3.43 m 11 ft. 5 in., 3.49 m
Maximum Dump Hight: Standard Arm/Long Arm	8 ft. 0 in., 2.45 m 8 ft. 3 in., 2.51 m
Minimum swing radius	5 ft. 4 in., 1.63 m
Arm /Stick Digging Force: Standard Arm/Long Arm	2,135.7 lbf, 9.5 kN 1,865.9 lbf, 8.3 kN
Arm/Stick Breakout Force	lbf, kN
Bucket Digging Force	3,641.9 lbf, 16.2 kN
Bucket Breakout Force	lbf, kN
Rated Lifting Capacity: 3m (9.8ft) radius, over front, blade down at ground level	1000 lb, 454 kg *
Swing/Slewing Speed	9.8 RPM
Hydraulic Oil Capacity: Tank/System	4.8 gal, 18.0 L 6.9 gal, 26.0 L
Fuel Tank Capacity	5.8 gal, 22 L
Engine Oil Capacity, Including Filter	1.2 gal, 4.4 L
Operator Sound Pressure (ISO 6396:2008)	73 dB(A)
Average Exterior Sound Pressure (ISO 6395:2008)	93 dB(A)
Assumed or not Certain Value	*

Engine	Yanmar 3TNV74F
Cylinders	3
Displacement	61.0 cu-in, 0.99 L
Net Horsepower @ RPM	14.7 hp, 10.8 kW at 2,400 rpm
Travel speeds Low/High	Low: 2.4 km/h, 1.5 mph High: 4.2 km/h, 2.6 mph
Max traction force Low	2,562.8 lbf, 1,165 kg
Gradeability	30 degrees
Ground pressure Canopy/Cab	3.9 psi, 26.6 kpa – psi, – kpa
Pump Type	Gear, 2 port Piston
Pump Flow, Piston	2 x 5.1 gpm, 2 x 19.2 L/min
Pump Flow, Gear	2.9 gpm, 10.8 L/min
System Pressure	2,987.8 psi, 206 bar
Auxiliary Flow	7.9 gpm, 30 L/m @ 2400 RPM – gpm, – L/m @ – RPM
Operating Weight - Canopy	3,790 lb., 1,720 kg
Operating Weight - Cab	N/A
Overall Height	7 ft. 10 in., 2.38 m
Minimum Overall transport length	11 ft. 6 in., 3.5 m
Width of Upper Structure	3 ft. 3 in., 0.99 m
Track Overall Length	5 ft. 2 in., 1.59 m
Track Overall Width (retracted /extended)	3 ft. 3 in., 0.99 m / 4 ft. 2 in., 1.28 m
Track Shoe Width	9 in., 0.23 m
Center to Center - Idler to Sprocket	4 ft. 0 in., 1.21 m
Upper Structure Ground Clearance	1 ft. 6 in., 0.45 m
Minimum Ground Clearance	6 in., 0.16 m
Boom Swing Left / Right	75 degrees / 50 degrees
Arm / Stick / Dipper Length Standard Arm Long	3 ft. 1 in., 0.93 m – ft. – in., – m
Radius: Standard Counterweight/Additional Counterweight	2 ft. 3 in., 0.68 m – ft. – in., – m
Tail Swing Overhang: Standard Counterweight/Additional Counterweight	1.6 in., 4 cm – in., – cm
Blade height	10 in., 0.26 m
Blade Width: Standard / With Extensions	3 ft. 3 in., 0.98 m 4 ft. 2 in., 1.28 m
Blade: Bottom Highest/Lowest Position	11 in., 0.29 m / 9 in., 0.23 m
Maximum Dig Radius / Max Reach: Standard Arm / Long Arm	12 ft. 6 in., 3.81 m – ft. – in., – m
Maximum Ground Level Dig Radius/Reach: Standard Arm/Long Arm	12 ft. 2 in., 3.72 m – ft. – in., – m
Maximum Digging Depth: Standard Arm/Long Arm	7 ft. 2 in., 2.19 m – ft. – in., – m
Maximum Digging Hight: Standard Arm/Long Arm	11 ft. 7 in., 3.54 m – ft. – in., – m
Maximum Dump Hight: Standard Arm/Long Arm	8 ft. 3 in., 2.51 m – ft. – in., – m
Minimum swing radius	5 ft. 0 in., 1.53 m
Arm /Stick Digging Force: Standard Arm/Long Arm	1,933 lbf, 8.6 kN – lbf, – kN
Arm/Stick Breakout Force	– lbf, – kN
Bucket Digging Force	3,598 lbf, 16.0 kN
Bucket Breakout Force	– lbf, – kN
Rated Lifting Capacity: 3m (9.8ft) radius, over front, blade down at ground level	1,015 lb, 471 kg
Swing/Slewing Speed	9.4 RPM
Hydraulic Oil Capacity: Tank/System	3.7 gal, 14 L 6.9 gal, 26 L
Fuel Tank Capacity	5.3 gal, 20 L
Engine Oil Capacity, Including Filter	3.3 qt., 3.1 L
Operator Sound Pressure (ISO 6396:2008)	79 dB(A)
Average Exterior Sound Pressure (ISO 6395:2008)	93 dB(A) *
Assumed or not Certain Value	*

Engine	Kubota D902-BH-E4
Cylinders	3
Displacement	54.8 cu-in, 0.898 L
Net Horsepower @ RPM	15.5hp, 11.6Kw @ 2300 RPM
Travel speeds Low/High	Low: 2.2 km/h, 1.4 mph High: 4.0 km/h, 2.6 mph
Max traction force Low	4,542 lb., 2,060kg
Gradeability	30 degrees
Ground pressure Canopy/Cab	3.7 psi, 25.5 kpa 3.8 psi, 26.2 kpa
Pump Type	2 Gear, 2 port Piston
Pump Flow, Piston	2 x 4.6 gpm, 2 x 17.3 L/min
Pump Flow, Gear	Gear 1: 2.8 gpm, 10.4 L/min Gear 2: 1.7 gpm, 6.2 L/min
System Pressure	3,132 psi, 216 bar
Auxiliary Flow	7.4 gpm, 27.7 L/m @ 2300 RPM – gpm, – L/m @ 2400 RPM
Operating Weight - Canopy	3,737 lb., 1,695 kg
Operating Weight - Cab	3,957 lb., 1,795 kg
Overall Height	7 ft. 8 in., 2.33 m
Minimum Overall transport length	12 ft. 2 in., 3.71 m
Width of Upper Structure	3 ft. 3 in., 0.99 m
Track Overall Length	5 ft. 2 in., 1.59 m
Track Overall Width (retracted /extended)	3 ft. 3 in., 0.99 m / 4 ft. 3 in., 1.30 m
Track Shoe Width	9 in., 0.23 m
Center to Center - Idler to Sprocket	4 ft. 1 in., 1.23 m
Upper Structure Ground Clearance	– ft. – in., – m
Minimum Ground Clearance	6.3 in., 0.16 m
Boom Swing Left / Right	75 degrees / 60 degrees
Arm / Stick / Dipper Length Standard Arm Long	3 ft. 7 in., 1.09 m – ft. – in., – m
Radius: Standard Counterweight/Additional Counterweight	3 ft. 6 in., 1.07 m – ft. – in., – m
Tail Swing Overhang: Standard Counterweight/Additional Counterweight	15.8 in., 42 cm * – in., – cm
Blade height	9.1 in., 0.23 m
Blade Width: Standard / With Extensions	3 ft. 3 in., 0.98 m 4 ft. 3 in., 1.30 m
Blade: Bottom Highest/Lowest Position	9.1 in., 0.23 m / 9.1 in., 0.23 m
Maximum Dig Radius / Max Reach: Standard Arm / Long Arm	12 ft. 10 in., 3.92 m – ft. – in., – m
Maximum Ground Level Dig Radius/Reach: Standard Arm/Long Arm	12 ft. 8 in., 3.86 m – ft. – in., – m
Maximum Digging Depth: Standard Arm/Long Arm	7 ft. 10 in., 2.38 m – ft. – in., – m
Maximum Digging Hight: Standard Arm/Long Arm	11 ft. 4 in., 3.46 m – ft. – in., – m
Maximum Dump Hight: Standard Arm/Long Arm	7 ft. 10 in., 2.38 m – ft. – in., – m
Minimum swing radius	4 ft. 10 in., 1.48 m
Arm /Stick Digging Force: Standard Arm/Long Arm	– lbf, – kN – lbf, – kN
Arm/Stick Breakout Force	1,852 lbf, 8.24 kN
Bucket Digging Force	– lbf, – kN
Bucket Breakout Force	3,594 lbf, 15.98 kN
Rated Lifting Capacity: 3m (9.8ft) radius, over front, blade down at ground level	680 lb, 309 kg
Swing/Slewing Speed	9.1 RPM
Hydraulic Oil Capacity: Tank/System	4.1 gal, 15.5 L 7.4 gal, 28 L
Fuel Tank Capacity	5.6 gal, 21 L
Engine Oil Capacity, Including Filter	0.951 gal, 3.6 L
Operator Sound Pressure (ISO 6396:2008)	78 dB(A)
Average Exterior Sound Pressure (ISO 6395:2008)	93 dB(A)
Assumed or not Certain Value	*

Engine	Yanmar 3TNV74F
Cylinders	3
Displacement	61.0 cu-in, 0.99 L
Net Horsepower @ RPM	14.5hp, 10.8Kw @ 2400 RPM
Travel speeds Low/High	Low: 2.4 km/h, 1.5 mph High: 4.2 km/h, 2.6 mph
Max traction force Low	2,562.8 lb, 1,165 kg
Gradeability	30 degrees
Ground pressure Canopy/Cab	3.9 psi, 26.6 kPa
Pump Type	Gear, 2 port Piston
Pump Flow, Piston	2 x 5.1 gpm, 2 x 19.2 L/min
Pump Flow, Gear	2.9 gpm, 10.98 L/min
System Pressure	2,988 psi, 206 bar
Auxiliary Flow	7.9 gpm, 30 L/m @ 2300 RPM
Operating Weight - Canopy	3,790 lb., 1,720 kg
Operating Weight - Cab	N/A
Overall Height	7 ft. 10 in., 2.38 m
Minimum Overall transport length	11 ft. 6 in., 3.50 m
Width of Upper Structure	3 ft. 3 in., 0.99 m
Track Overall Length	5 ft. 2 in., 1.57 m
Track Overall Width (retracted /extended)	3 ft. 3 in., 0.99 m) / 4 ft. 2 in., 1.28 m
Track Shoe Width	9 in., 0.23 m
Center to Center - Idler to Sprocket	4 ft. 0 in., 1.22 m
Upper Structure Ground Clearance	1 ft. 6 in., 0.45 m
Minimum Ground Clearance	6 in., 0.17 m
Boom Swing Left / Right	70 degrees / 50 degrees
Arm / Stick / Dipper Length Standard Arm Long	3 ft. 1 in., 0.93 m – ft. – in., – m
Radius: Standard Counterweight/Additional Counterweight	2 ft. 3 in., 0.68 m – ft. – in., – m
Tail Swing Overhang: Standard Counterweight/Additional Counterweight	1.6 in., 4 cm – in., – cm
Blade height	10.2 in., 0.26 m
Blade Width: Standard / With Extensions	3 ft. 3 in., 0.98 m 4 ft. 2 in., 1.28 m
Blade: Bottom Highest/Lowest Position	11 in., 0.29 m / 9 in., 0.23 m
Maximum Dig Radius / Max Reach: Standard Arm / Long Arm	12 ft. 6 in., 3.81 m – ft. – in., – m
Maximum Ground Level Dig Radius/Reach: Standard Arm/Long Arm	12 ft. 2 in., 3.72 m – ft. – in., – m
Maximum Digging Depth: Standard Arm/Long Arm	7 ft. 2 in., 2.19 m – ft. – in., – m
Maximum Digging Hight: Standard Arm/Long Arm	11 ft. 7 in., 3.54 m – ft. – in., – m
Maximum Dump Hight: Standard Arm/Long Arm	8 ft. 3 in., 2.51 m – ft. – in., – m
Minimum swing radius	5 ft. 0 in., 1.53 m
Arm /Stick Digging Force: Standard Arm/Long Arm	1,933 lbf, 8.6 kN – lbf, – kN
Arm/Stick Breakout Force	lbf, kN
Bucket Digging Force	3,597 lbf, 16.0 kN
Bucket Breakout Force	lbf, kN
Rated Lifting Capacity: 3m (9.8ft) radius, over front, blade down at ground level	1,015 lb, 471 kg
Swing/Slewing Speed	9.4 RPM
Hydraulic Oil Capacity: Tank/System	3.7 gal, 14 L 6.9 gal, 26 L
Fuel Tank Capacity	5.3 gal, 20 L
Engine Oil Capacity, Including Filter	3.3 qt., 3.1 L
Operator Sound Pressure (ISO 6396:2008)	79 dB(A)
Average Exterior Sound Pressure (ISO 6395:2008)	93 dB(A) *
Assumed or not Certain Value	*

Engine	Kubota D902
Cylinders	3
Displacement	54.8 cu-in, 0.898 L
Net Horsepower @ RPM	15.5hp, 11.6Kw @2300 RPM
Travel speeds Low/High	Low: 2.2 km/h, 1.4mph High: 4.2 km/h, 2.6 mph
Max traction force Low	3,300 lb., 1,420 kg
Gradeability	30 degrees
Ground pressure Canopy/Cab	3.98 psi, 27.4 kpa
Pump Type	Gear, 2 port Piston
Pump Flow, Piston	2 x 5 gpm, 2 x 18.8 L/min
Pump Flow, Gear	3 gpm, 11.3 L/min
System Pressure	2,990 psi, 206 bar
Auxiliary Flow	7.9 gpm, 30 L/m @ 2300 RPM
Operating Weight - Canopy	3,910 lb., 1,775 kg
Operating Weight - Cab	N/A
Overall Height	7 ft. 7 in., 2.32 m
Minimum Overall transport length	11 ft. 5 in., 3.48 m
Width of Upper Structure	2 ft. 11 in., 0.89 m
Track Overall Length	5 ft. 3 in., 1.59 m
Track Overall Width (retracted /extended)	3 ft. 3 in., 0.99 m) / 4 ft. 3 in., 1.30 m
Track Shoe Width	9 in., 0.23 m
Center to Center - Idler to Sprocket	4 ft. 0 in., 1.22 m
Upper Structure Ground Clearance	1 ft. 5 in., 0.44 m
Minimum Ground Clearance	6.7 in., 0.17 m
Boom Swing Left / Right	70 degrees / 54 degrees
Arm / Stick / Dipper Length Standard Arm Long	3 ft. 2 in., 0.96 m 3 ft. 8 in., 1.12 m
Radius: Standard Counterweight/Additional Counterweight	2 ft. 1 in., 0.64 m 2 ft. 4 in., 0.72 m
Tail Swing Overhang: Standard Counterweight/Additional Counterweight	0 in., 0 cm 3 in., 7.6 cm
Blade height	9.8 in., 0.25 m
Blade: Bottom Highest/Lowest Position	11.2 in., 0.29 m / 8.9 in., 0.223 m
Blade Width: Standard / With Extensions	4 ft. 3 in., 1.30 m ft. in., m
Maximum Dig Radius / Max Reach: Standard Arm / Long Arm	12 ft. 10 in., 3.90 m 13 ft. 3 in., 4.03 m
Maximum Ground Level Dig Radius/Reach: Standard Arm/Long Arm	12 ft. 6 in., 3.80 m 12 ft. 11 in., 3.94 m
Maximum Digging Depth: Standard Arm/Long Arm	7 ft. 3 in., 2.20 m 7 ft. 9 in., 2.35 m
Maximum Digging Hight: Standard Arm/Long Arm	11 ft. 9 in., 3.58 m 12 ft. 1 in., 3.68 m
Maximum Dump Hight: Standard Arm/Long Arm	8 ft. 5 in., 2.57 m 8 ft. 10 in., 2.67 m
Minimum swing radius	5 ft. 2 in., 1.58 m
Arm /Stick Digging Force: Standard Arm/Long Arm	1,920 lbf, 8.5 kN 1,710 lbf, 7.6 kN
Arm/Stick Breakout Force	lbf, kN
Bucket Digging Force	3,490 lbf, 15.5 kN
Bucket Breakout Force	lbf, kN
Rated Lifting Capacity: 3m (9.8ft) radius, over front, blade down at ground level	910 lb, 410 kg
Swing/Slewing Speed	9.5 RPM
Hydraulic Oil Capacity: Tank/System	3.4 gal, 13 L 6.1 gal, 23 L
Fuel Tank Capacity	5.3 gal, 20 L
Engine Oil Capacity, Including Filter	5.3 gal, 20 L
Operator Sound Pressure (ISO 6396:2008)	76 dB(A)
Average Exterior Sound Pressure (ISO 6395:2008)	93 dB(A) *
Assumed or not Certain Value	*

Engine	Kubota D902
Cylinders	3
Displacement	54.8 cu-in, 0.898 L
Net Horsepower @ RPM	15.5hp, 11.6Kw @2300 RPM
Travel speeds Low/High	Low: 2.2 km/h, 1.4mph High: 3.5 km/h, 2.17 mph
Max traction force Low	lb, kg
Gradeability	30 degrees
Ground pressure Canopy/Cab	psi / kpa, psi / kpa
Pump Type	Gear
Pump flow, Piston	N/A
Pump flow, Gear	Gear 1: 4.4 gpm, 16.6 L/min, Gear 2: 4.4 gpm, 16.6 L/min
System pressure	psi, bar
Auxiliary flow	gpm, L/m @ 2300 RPM
Operating Weight - Canopy	3,000 lb., 1,363 kg
Operating Weight - Cab	3,200 lbs l 1451 kg
Overall Height	7 ft. 2 in., 2.18 m
Minimum Overall transport length	ft. in., m
Width of Upper Structure	3 ft. 3 in., 0.99 m
Track Overall Length	5 ft. 0 in., 1.52 m
Track Overall Width (retracted /extended)	ft. in., m / 3 ft. 7 in., 1.17 m
Track Shoe Width	9 in., 0.23 m
Center to Center - Idler to Sprocket	ft. in., m
Upper Structure Ground Clearance	ft. in., m
Minimum Ground Clearance	5.5 in., 0.14 m
Boom Swing Left / Right	45 degrees / 45 degrees
Arm / Stick / Dipper Length Standard Arm Long	ft. in., m ft. in., m
Radius: Standard Counterweight/Additional Counterweight	ft. in., m ft. in., m
Tail Swing Overhang: Standard Counterweight/Additional Counterweight	in., cm in., cm
Blade height	in., cm
Blade: Bottom Highest/Lowest Position	in., m / in., m
Blade Width: Standard / With Extensions	4 ft. 3 in., 1.30 m ft. in., m
Maximum Dig Radius / Max Reach: Standard Arm / Long Arm	12 ft. 3 in., 3.73 m ft. in., m
Maximum Ground Level Dig Radius/Reach: Standard Arm/Long Arm	ft. in., m ft. in., m
Maximum Digging Depth: Standard Arm/Long Arm	6 ft. 2 in., 1.88 m ft. in., m
Maximum Digging Hight: Standard Arm/Long Arm	10 ft. 1 in., 3.07 m ft. in., m
Maximum Dump Hight: Standard Arm/Long Arm	7 ft. 6 in., 2.29 m ft. in., m
Minimum swing radius	ft. in., m
Arm /Stick Digging Force: Standard Arm/Long Arm	2,123 lbf, 9.4 kN
Arm/Stick Breakout Force	lbf, kN
Bucket Digging Force	lbf, kN
Bucket Breakout Force	lbf, kN
Rated Lifting Capacity: 3m (9.8ft) radius, over front, blade down at ground level	lb, kg
Swing/Slewing Speed	RPM
Hydraulic Oil Capacity: Tank/System	gal, L gal, L
Fuel Tank Capacity	2.4 gal, 9.1 L
Engine Oil Capacity, Including Filter	gal, L
Operator Sound Pressure (ISO 6396:2008)	dB(A)
Average Exterior Sound Pressure (ISO 6395:2008)	dB(A)

Cat 301.7 CR Excavator

Reviews

Quick Comparison

Related products

Login
