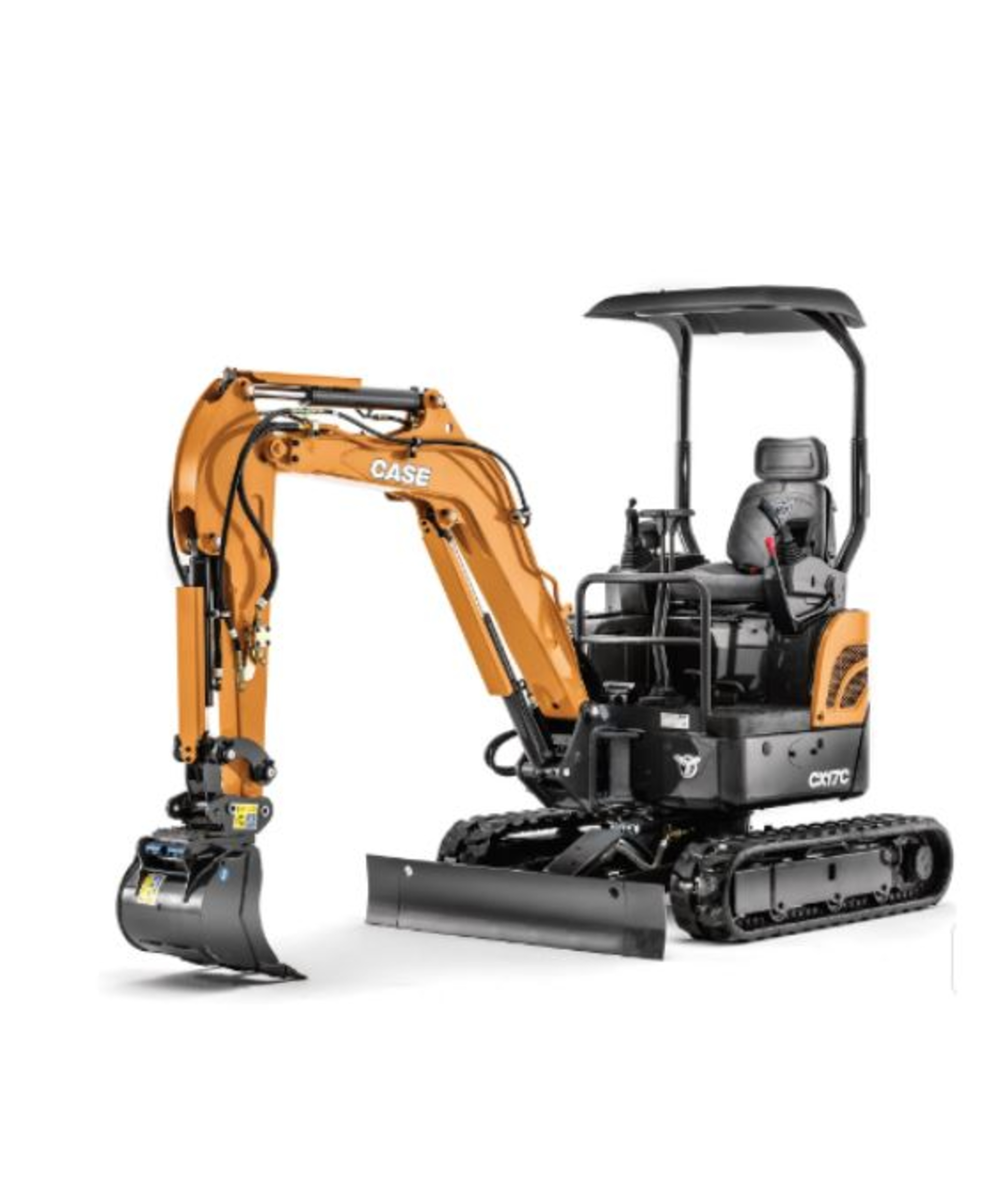

Case CX17C Excavator

Category: Comparison Excavators Tags: excavator, mini, mini excavator, zero tail Brand: Case

Check out the Case Website for more info on the Case CX17C Excavator!

Or check out our Tsunami equivalent models!

Engine	Kubota D902
Cylinders	3
Displacement	54.8 cu-in, 0.898 L
Net Horsepower @ RPM	15.5hp, 11.6Kw @2300 RPM
Travel speeds Low/High	Low: 2.2 km/h, 1.4mph High: 4.2 km/h, 2.6 mph
Max traction force Low	3,300 lb., 1,420 kg
Gradeability	30 degrees
Ground pressure Canopy/Cab	3.98 psi, 27.4 kpa
Pump Type	Gear, 2 port Piston
Pump Flow, Piston	2 x 5 gpm, 2 x 18.8 L/min
Pump Flow, Gear	3 gpm, 11.3 L/min
System Pressure	2,990 psi, 206 bar
Auxiliary Flow	7.9 gpm, 30 L/m @ 2300 RPM
Operating Weight - Canopy	3,910 lb., 1,775 kg
Operating Weight - Cab	N/A
Overall Height	7 ft. 7 in., 2.32 m
Minimum Overall transport length	11 ft. 5 in., 3.48 m
Width of Upper Structure	2 ft. 11 in., 0.89 m
Track Overall Length	5 ft. 3 in., 1.59 m
Track Overall Width (retracted /extended)	3 ft. 3 in., 0.99 m) / 4 ft. 3 in., 1.30 m
Track Shoe Width	9 in., 0.23 m
Center to Center - Idler to Sprocket	4 ft. 0 in., 1.22 m
Upper Structure Ground Clearance	1 ft. 5 in., 0.44 m
Minimum Ground Clearance	6.7 in., 0.17 m
Boom Swing Left / Right	70 degrees / 54 degrees
Arm / Stick / Dipper Length Standard Arm Long	3 ft. 2 in., 0.96 m 3 ft. 8 in., 1.12 m
Radius: Standard Counterweight/Additional Counterweight	2 ft. 1 in., 0.64 m 2 ft. 4 in., 0.72 m
Tail Swing Overhang: Standard Counterweight/Additional Counterweight	0 in., 0 cm 3 in., 7.6 cm
Blade height	9.8 in., 0.25 m
Blade: Bottom Highest/Lowest Position	11.2 in., 0.29 m / 8.9 in., 0.223 m
Blade Width: Standard / With Extensions	4 ft. 3 in., 1.30 m ft. in., m
Maximum Dig Radius / Max Reach: Standard Arm / Long Arm	12 ft. 10 in., 3.90 m 13 ft. 3 in., 4.03 m
Maximum Ground Level Dig Radius/Reach: Standard Arm/Long Arm	12 ft. 6 in., 3.80 m 12 ft. 11 in., 3.94 m
Maximum Digging Depth: Standard Arm/Long Arm	7 ft. 3 in., 2.20 m 7 ft. 9 in., 2.35 m
Maximum Digging Hight: Standard Arm/Long Arm	11 ft. 9 in., 3.58 m 12 ft. 1 in., 3.68 m
Maximum Dump Hight: Standard Arm/Long Arm	8 ft. 5 in., 2.57 m 8 ft. 10 in., 2.67 m
Minimum swing radius	5 ft. 2 in., 1.58 m
Arm /Stick Digging Force: Standard Arm/Long Arm	1,920 lbf, 8.5 kN 1,710 lbf, 7.6 kN
Arm/Stick Breakout Force	lbf, kN
Bucket Digging Force	3,490 lbf, 15.5 kN
Bucket Breakout Force	lbf, kN
Rated Lifting Capacity: 3m (9.8ft) radius, over front, blade down at ground level	910 lb, 410 kg
Swing/Slewing Speed	9.5 RPM
Hydraulic Oil Capacity: Tank/System	3.4 gal, 13 L 6.1 gal, 23 L
Fuel Tank Capacity	5.3 gal, 20 L
Engine Oil Capacity, Including Filter	5.3 gal, 20 L
Operator Sound Pressure (ISO 6396:2008)	76 dB(A)
Average Exterior Sound Pressure (ISO 6395:2008)	93 dB(A) *
Assumed or not Certain Value	*
