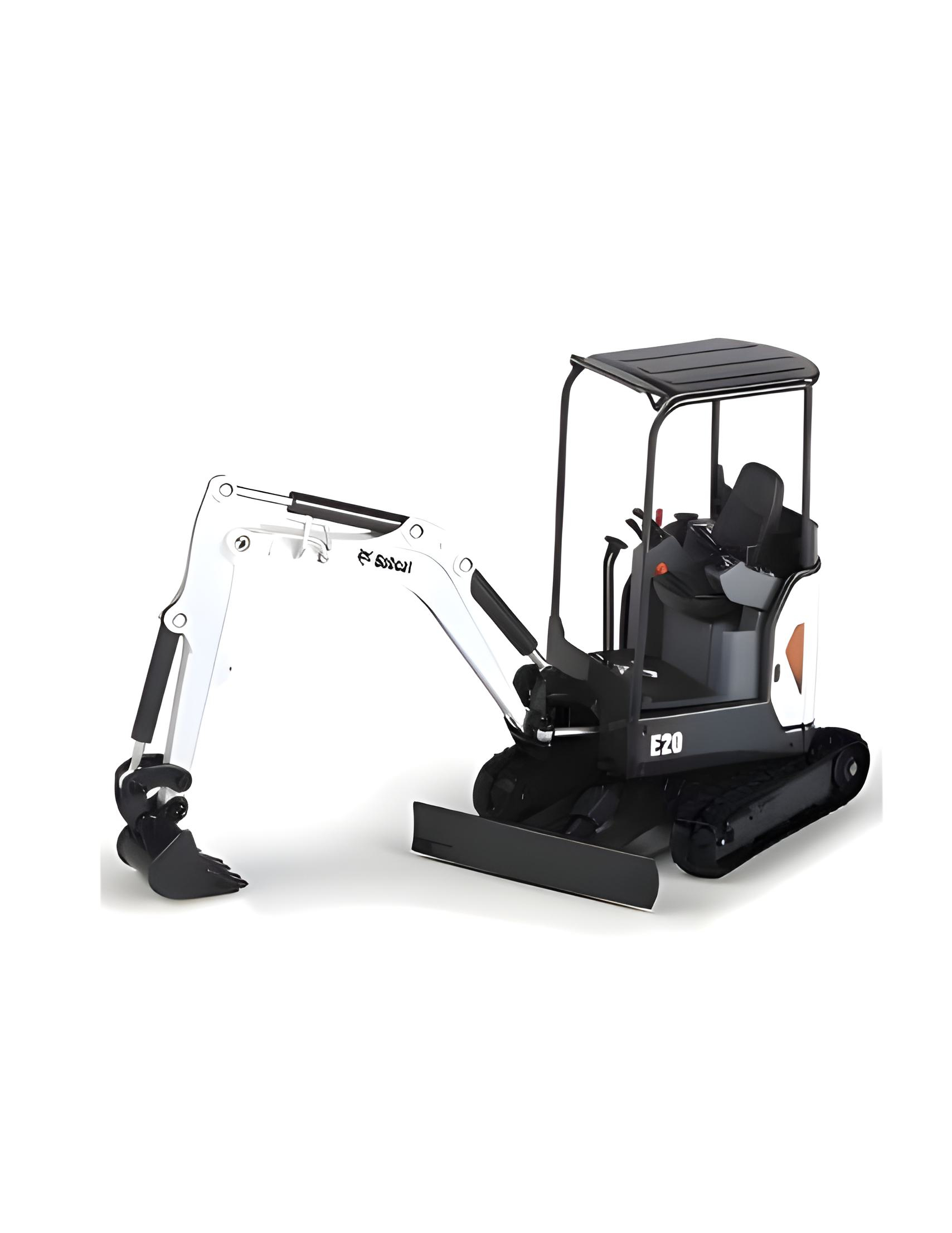

Bobcat E20 Excavator

Category: Comparison Excavators Tags: excavator, mini, mini excavator, zero tail Brand: Bobcat

Check out the Bobcat Website for more info on the Bobcat E20 Excavator

Or check out our Tsunami equivalent models!

Engine	Kubota D722-E2B-BCZ-7 *
Cylinders	3
Displacement	43.9 cu-in, 0.719 L
Net Horsepower @ RPM	15 hp, 11.2 Kw @ 2,400 RPM
Travel speeds Low/High	Low: 2.1 km/h, 1.3 mph High: 4.2 km/h, 2.6 mph
Max traction force Low	– lbf, – kg
Gradeability	30 degrees
Ground pressure Canopy/Cab	4.5 psi, 31.1 kpa – psi, – kpa
Pump Type	Gear, 2 port Piston
Pump Flow, Piston	2 x 4.0 gpm, 2 x 15.0 L/min
Pump Flow, Gear	3.0 gpm, 11.3 L/min
System Pressure	2,610 psi, 180 bar
Auxiliary Flow	7.9 gpm, 30 L/m @ 2400 RPM – gpm, – L/m @ – RPM
Operating Weight - Canopy	4,304 lb., 1,953 kg
Operating Weight - Cab	4,475 lb., 2,034 kg *
Overall Height	7 ft. 6 in., 2.30 m
Minimum Overall transport length	12 ft. 1 in., 3.69 m
Width of Upper Structure	3 ft. 3 in., 0.99 m
Track Overall Length	5 ft. 4 in., 1.62 m
Track Overall Width (retracted /extended)	3 ft. 3 in., 0.99 m / 4 ft. 6 in., 1.36 m
Track Shoe Width	9 in., 0.23 m
Center to Center - Idler to Sprocket	4 ft. 2 in., 1.26 m
Upper Structure Ground Clearance	1 ft. 5 in., 0.42 m
Minimum Ground Clearance	– in., – m
Boom Swing Left / Right	80 degrees / 60 degrees
Arm / Stick / Dipper Length Standard Arm Long	– ft. – in., – m – ft. – in., – m
Radius: Standard Counterweight/Additional Counterweight	2 ft. 3 in., 0.68 m – ft. – in., – m
Tail Swing Overhang: Standard Counterweight/Additional Counterweight	0 in., 0 cm – in., – cm
Blade height	9.6 in., 0.235 m
Blade Width: Standard / With Extensions	3 ft. 3 in., 0.98 m 4 ft. 6 in., 1.36 m
Blade: Bottom Highest/Lowest Position	8.7 in., 0.22 m / 8.1 in., 0.204 m
Maximum Dig Radius / Max Reach: Standard Arm / Long Arm	13 ft. 7 in., 4.13 m 14 ft. 2 in., 4.31 m
Maximum Ground Level Dig Radius/Reach: Standard Arm/Long Arm	13 ft. 5 in., 4.09 m 14 ft. 0 in., 4.26 m
Maximum Digging Depth: Standard Arm/Long Arm	7 ft. 10 in., 2.39 m – ft. – in., – m
Maximum Digging Hight: Standard Arm/Long Arm	11 ft. 9 in., 3.57 m – ft. – in., – m
Maximum Dump Hight: Standard Arm/Long Arm	8 ft. 8 in., 2.65 m – ft. – in., – m
Minimum swing radius	5 ft. 3 in., 1.59 m
Arm /Stick Digging Force: Standard Arm/Long Arm	2,331 lbf, 10.4 kN 2,086 lbf, 9.28 kN
Arm/Stick Breakout Force	– lbf, – kN
Bucket Digging Force	4,684 lbf, 20.8 kN
Bucket Breakout Force	– lbf, – kN
Rated Lifting Capacity: 3m (9.8ft) radius, over front, blade down at ground level	1,098 lb, 498 kg
Swing/Slewing Speed	8.2 RPM
Hydraulic Oil Capacity: Tank/System	3.78 gal, 14.3 L 5.0 gal, 19.0 L
Fuel Tank Capacity	5.0 gal, 19.0 L
Engine Oil Capacity, Including Filter	3.5 qt., 3.3 L
Operator Sound Pressure (ISO 6396:2008)	82 dB(A)
Average Exterior Sound Pressure (ISO 6395:2008)	93 dB(A)
Assumed or not Certain Value	*

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Quick Comparison

Bobcat E20 Excavator remove Tsunami EZ20D 2.0 Ton Excavator - Canopy remove Cat 302 CR Excavator remove Takeuchi TB225 Excavator remove Wacker Neuson ET20 Excavator remove

Name Bobcat E20 Excavator remove Tsunami EZ20D 2.0 Ton Excavator - Canopy remove Cat 302 CR Excavator remove Takeuchi TB225 Excavator remove Wacker Neuson ET20 Excavator remove


Price $27,000.00

Rating

Add to cart

Description

Additional information

Engine	Kubota D722-E2B-BCZ-7 *
Cylinders	3
Displacement	43.9 cu-in, 0.719 L
Net Horsepower @ RPM	15 hp, 11.2 Kw @ 2,400 RPM
Travel speeds Low/High	Low: 2.1 km/h, 1.3 mph High: 4.2 km/h, 2.6 mph
Max traction force Low	– lbf, – kg
Gradeability	30 degrees
Ground pressure Canopy/Cab	4.5 psi, 31.1 kpa – psi, – kpa
Pump Type	Gear, 2 port Piston
Pump Flow, Piston	2 x 4.0 gpm, 2 x 15.0 L/min
Pump Flow, Gear	3.0 gpm, 11.3 L/min
System Pressure	2,610 psi, 180 bar
Auxiliary Flow	7.9 gpm, 30 L/m @ 2400 RPM – gpm, – L/m @ – RPM
Operating Weight - Canopy	4,304 lb., 1,953 kg
Operating Weight - Cab	4,475 lb., 2,034 kg *
Overall Height	7 ft. 6 in., 2.30 m
Minimum Overall transport length	12 ft. 1 in., 3.69 m
Width of Upper Structure	3 ft. 3 in., 0.99 m
Track Overall Length	5 ft. 4 in., 1.62 m
Track Overall Width (retracted /extended)	3 ft. 3 in., 0.99 m / 4 ft. 6 in., 1.36 m
Track Shoe Width	9 in., 0.23 m
Center to Center - Idler to Sprocket	4 ft. 2 in., 1.26 m
Upper Structure Ground Clearance	1 ft. 5 in., 0.42 m
Minimum Ground Clearance	– in., – m
Boom Swing Left / Right	80 degrees / 60 degrees
Arm / Stick / Dipper Length Standard Arm Long	– ft. – in., – m – ft. – in., – m
Radius: Standard Counterweight/Additional Counterweight	2 ft. 3 in., 0.68 m – ft. – in., – m
Tail Swing Overhang: Standard Counterweight/Additional Counterweight	0 in., 0 cm – in., – cm
Blade height	9.6 in., 0.235 m
Blade Width: Standard / With Extensions	3 ft. 3 in., 0.98 m 4 ft. 6 in., 1.36 m
Blade: Bottom Highest/Lowest Position	8.7 in., 0.22 m / 8.1 in., 0.204 m
Maximum Dig Radius / Max Reach: Standard Arm / Long Arm	13 ft. 7 in., 4.13 m 14 ft. 2 in., 4.31 m
Maximum Ground Level Dig Radius/Reach: Standard Arm/Long Arm	13 ft. 5 in., 4.09 m 14 ft. 0 in., 4.26 m
Maximum Digging Depth: Standard Arm/Long Arm	7 ft. 10 in., 2.39 m – ft. – in., – m
Maximum Digging Hight: Standard Arm/Long Arm	11 ft. 9 in., 3.57 m – ft. – in., – m
Maximum Dump Hight: Standard Arm/Long Arm	8 ft. 8 in., 2.65 m – ft. – in., – m
Minimum swing radius	5 ft. 3 in., 1.59 m
Arm /Stick Digging Force: Standard Arm/Long Arm	2,331 lbf, 10.4 kN 2,086 lbf, 9.28 kN
Arm/Stick Breakout Force	– lbf, – kN
Bucket Digging Force	4,684 lbf, 20.8 kN
Bucket Breakout Force	– lbf, – kN
Rated Lifting Capacity: 3m (9.8ft) radius, over front, blade down at ground level	1,098 lb, 498 kg
Swing/Slewing Speed	8.2 RPM
Hydraulic Oil Capacity: Tank/System	3.78 gal, 14.3 L 5.0 gal, 19.0 L
Fuel Tank Capacity	5.0 gal, 19.0 L
Engine Oil Capacity, Including Filter	3.5 qt., 3.3 L
Operator Sound Pressure (ISO 6396:2008)	82 dB(A)
Average Exterior Sound Pressure (ISO 6395:2008)	93 dB(A)
Assumed or not Certain Value	*
